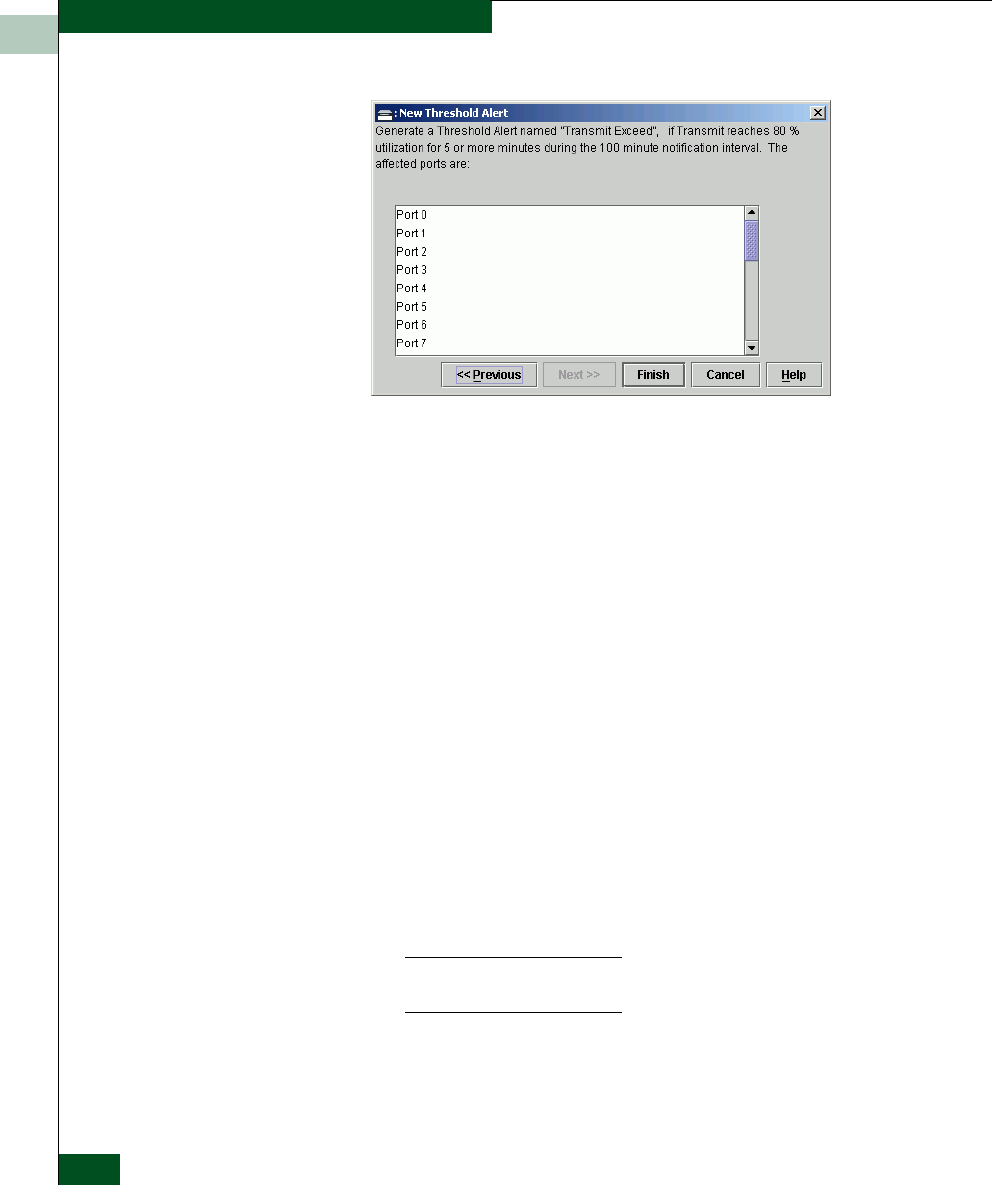

Figure 2-82 New Threshold Alerts Dialog Box - Summary Screen
12. Select Finish.
The Configure Threshold Alerts dialog box appears listing the
name, type, and state of the alert that you just configured.
13. At this point, the alert is not active. To activate the alert, select the
alert information that displays in the Configure Threshold Alerts
table and select Activate.
Modify an Alert Use the following steps to modify an existing threshold alert
configuration.
1. Select Threshold Alerts from the Configure menu.
The Configure Threshold Alerts dialog box displays.
2. Select the alert that you want to modify by clicking the alert
information in the table.
3. If the alert is active, select Deactivate, then select the alert
information in the table again.
4. Select Modify.
NOTE: If the alert is active, an error message displays prompting you to
deactivate the alert.
An initial Modify Threshold screen appears where you can change
the threshold type.
5. Select a threshold type from the drop-down list.
