McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Installation Tasks
1. Select Switch and Identification from the Configure menu at any
view. The Identification View displays (Figure 2-87).

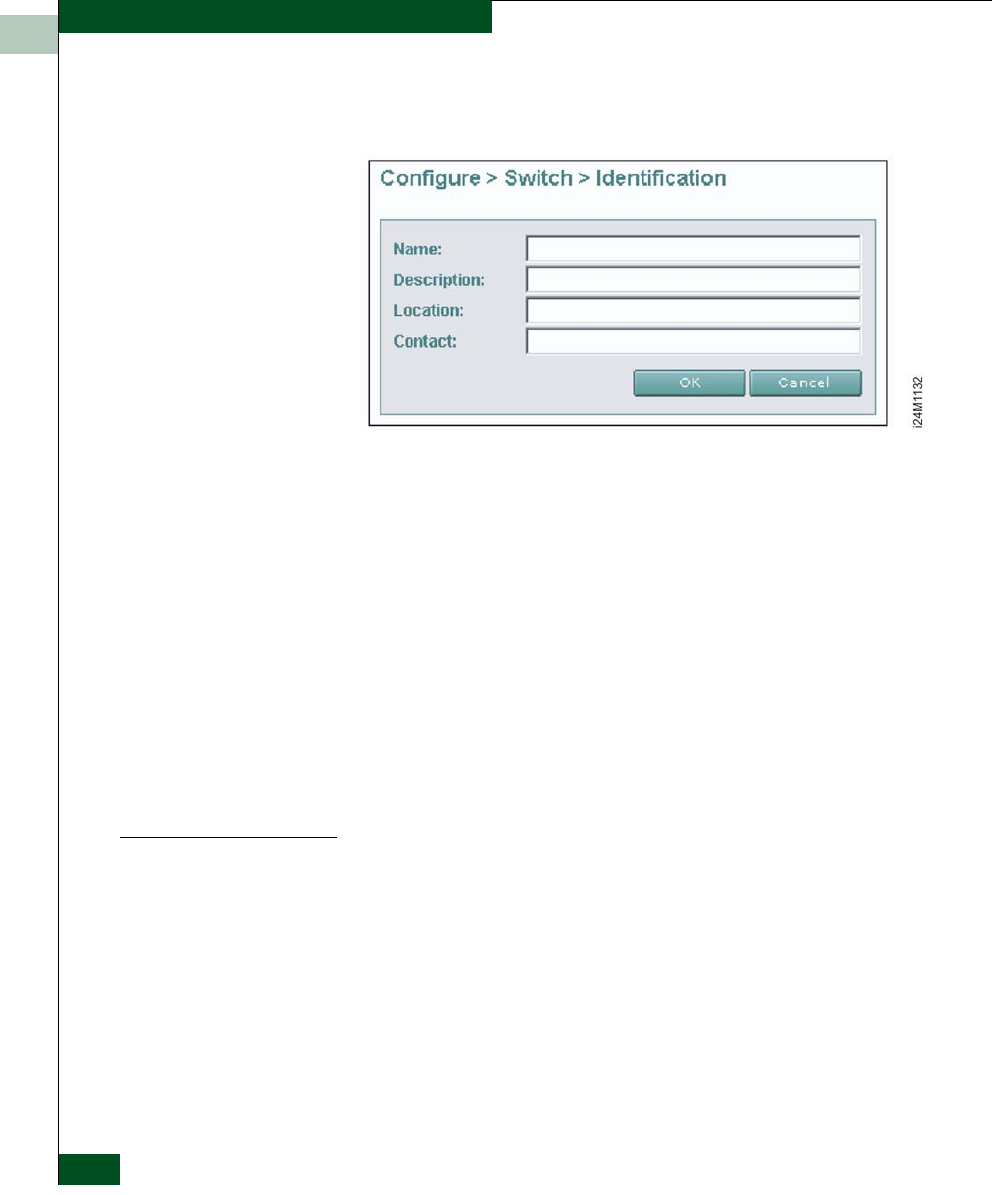

Figure 2-87 Identification View
a. Type a unique product name of 24 alphanumeric characters or
less in the Name field. If installed on a public LAN, the name
should reflect the product’s Ethernet network domain name
system (DNS) host name.
b. Type a product description of 255 alphanumeric characters or
less in the Description field.
c. Type the product’s physical location (255 alphanumeric
characters or less) in the Location field.
d. Type the name of a contact person (255 alphanumeric
characters or less) in the Contact field.
2. Click OK to save and activate changes.
Configure Date and
Time
Perform this procedure to configure product date and time.
1. Select Switch and Date & Time from the Configure menu at any
view. The Date Time View displays (Figure 2-88).
