2
Task 25: Configure the Switch from the EFCM Basic Interface (Optional)
2-117
Installation Tasks

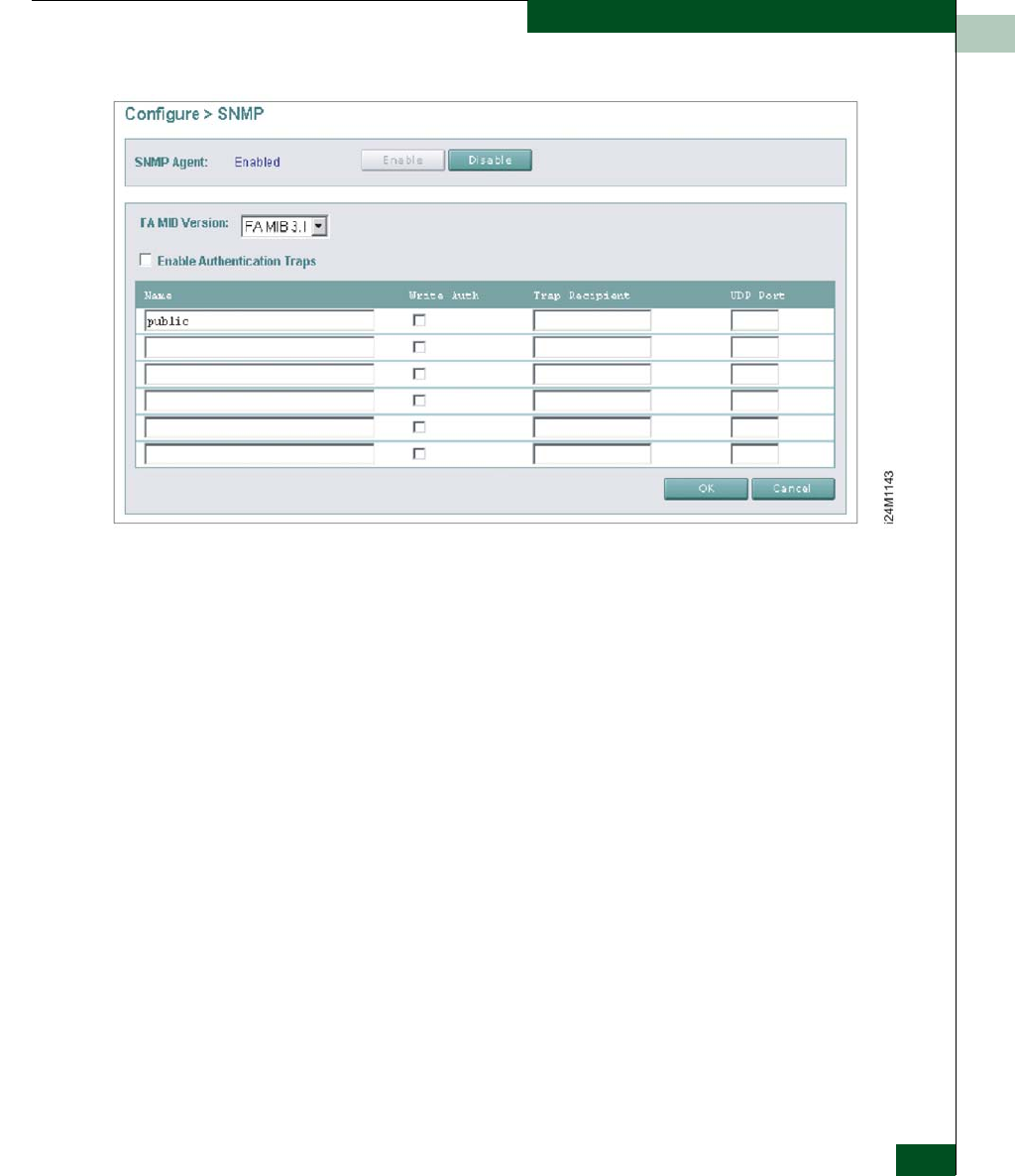

Figure 2-93 SNMP View
c. Click (check) the Enable Authentication Traps check box to
enable transmission of SNMP trap messages to recipients.
d. For each configured recipient, type a community name of 32
alphanumeric characters or less in the Name field. The name is
incorporated in SNMP trap messages to ensure against
unauthorized viewing.
e. Click (check) the box in the Write Auth column to enable write
authorization for the trap recipient (default is disabled). When
enabled, a configured user can change sysContact, sysName,
and sysLocation SNMP variables.
f. Type the IP address or DNS host name of the trap recipient
(SNMP management workstation) in the Trap Recipient field. It
is recommended the IP address be used.
g. Type a decimal port number in the UDP Port Number field to
specify the UDP port number
2. Click OK to save and activate changes.
