McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Installation Tasks
Enable CLI
Perform this procedure to toggle (enable or disable) the state of the
product’s command line interface. To change the CLI state:
1. Select CLI from the Configure menu at any view. The CLI View

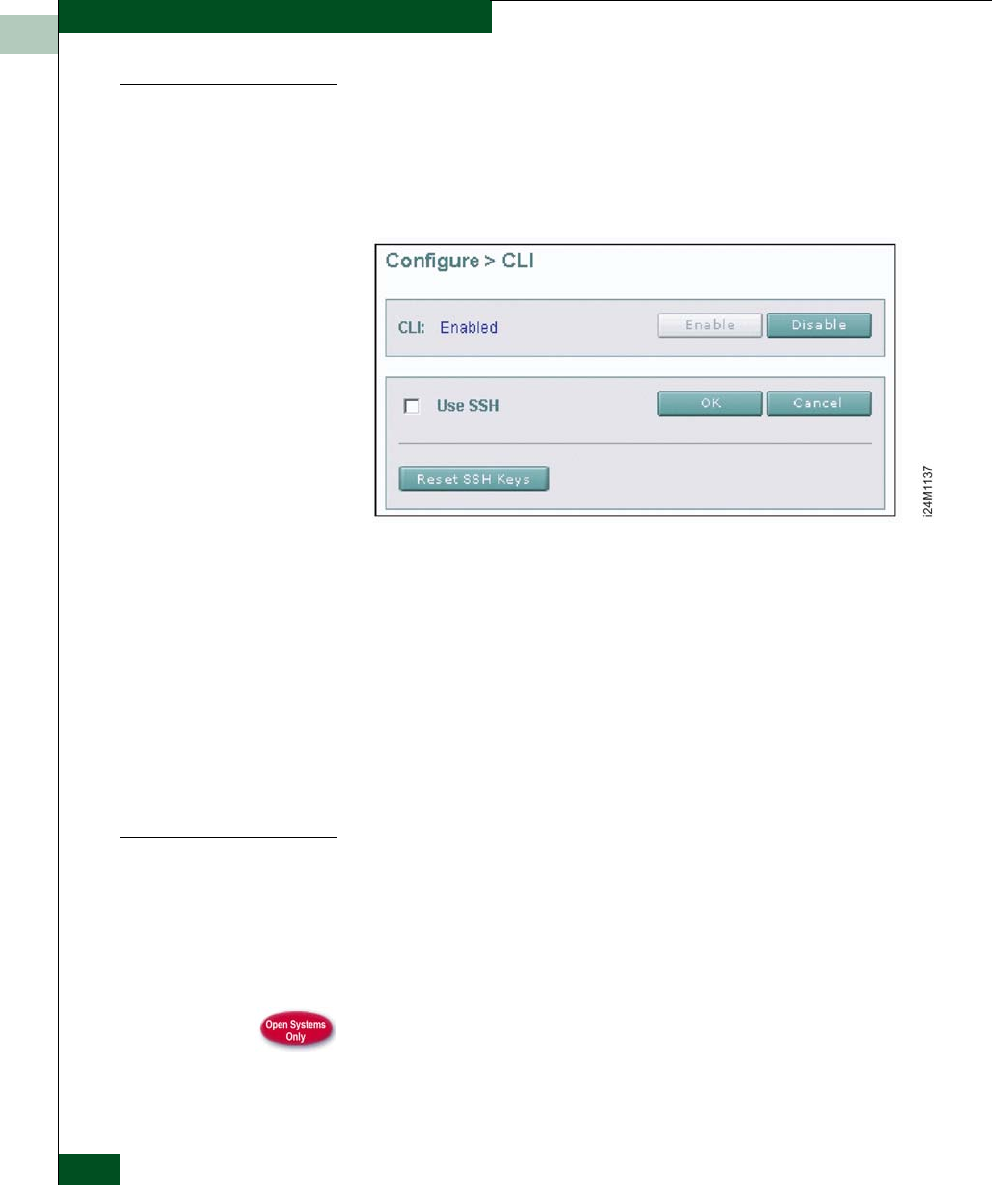

displays (Figure 2-94).
Figure 2-94 CLI View
2. Perform one of the following:
•Click Enable to activate the CLI.
•Click Disable to deactivate the CLI.
3. Click (check) the Use SSH check box to enable secure shell (SSH)
protocol. The protocol controls CLI access to the product and
provides software-enforced encryption.
4. Click OK to save and activate changes.
Enable or Disable
Host Control
Perform this procedure to configure the open systems management
server and enable OSI host control of the product. Implementing and
enabling OSI host control requires installation of a SAN management
application on the OSI server. Applications include Veritas
®
SANPoint™ Control or Tivoli
®
NetView
®
. To enable or disable OSMS
host control:
1. Select OSMS from the Configure menu at any view. The OSMS
View displays (Figure 2-95).
