McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Installation Tasks
2. Connect the other cable end to a 9-pin serial communication port
(COM1 or COM2) at the rear of the maintenance terminal PC.
3. Power on the maintenance terminal. At the Windows desktop,
click Start at the left side of the task bar. The Windows Workstation
menu displays.
NOTE: The following steps describe changing network addresses using
HyperTerminal serial communication software.
4. At the Windows Workstation menu, sequentially select the
Programs, Accessories, Communications, and HyperTerminal options.
The Connection Description dialog box displays (Figure 2-98).

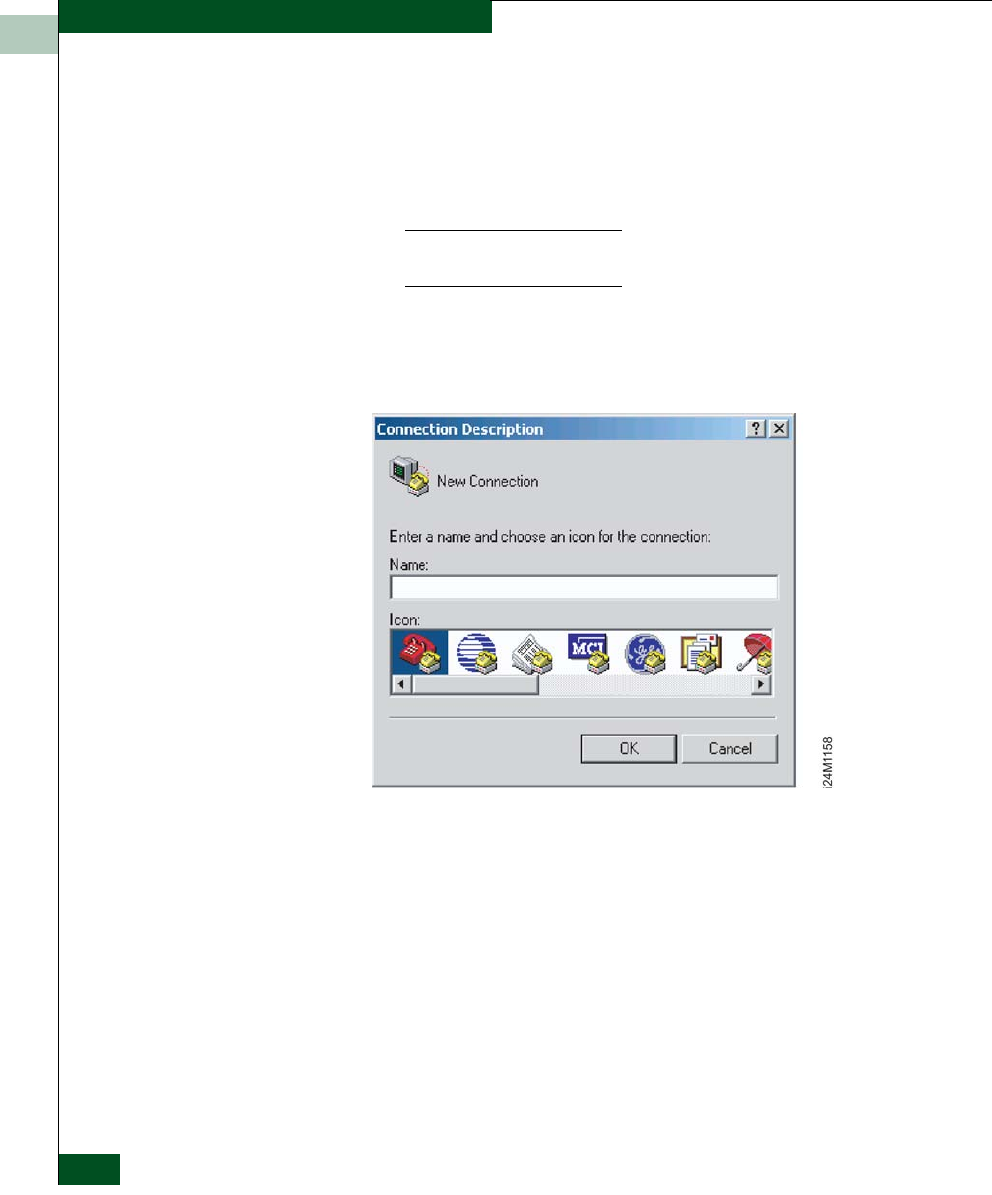

Figure 2-98 Connection Description Dialog Box
5. Type a descriptive product name in the Name field and click OK.
The Connect To dialog box displays.
6. Ensure the Connect using field displays COM1 or COM2
(depending on the port connection to the product), and click OK.
The COMn Properties dialog box displays, where n is 1 or 2.
