2
Task 28: Register with the McDATA File Center
2-131
Installation Tasks

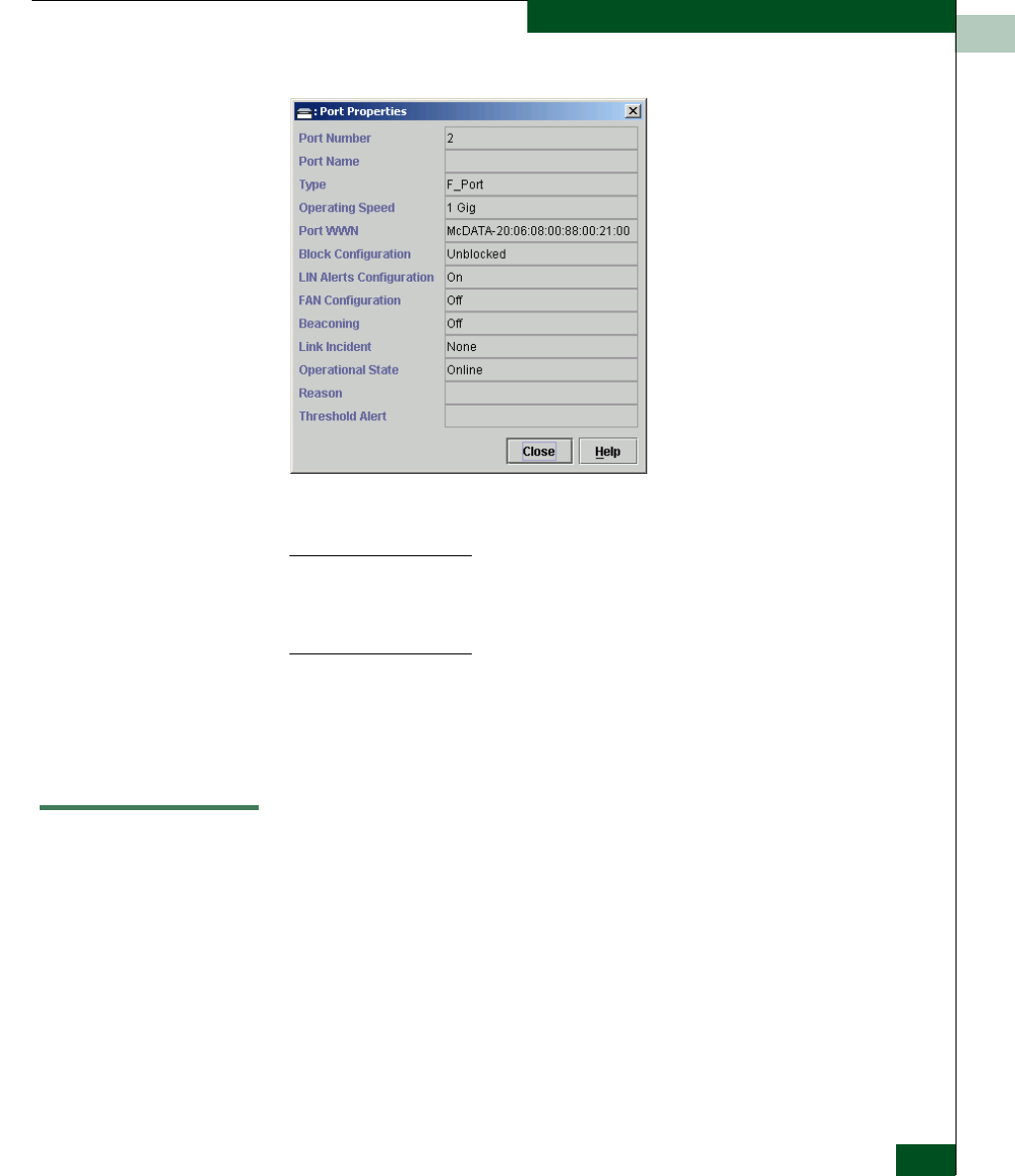

Figure 2-99 Port Properties Dialog Box
NOTE: If the Open Trunking feature is installed and additional item will
appear in the Port Properties dialog box, called Congested Threshold %. This
field displays the active congested threshold percentage currently configured
in the Configure Open Trunking dialog box.
9. Ensure the Link Incident field displays None and the Reason field
is blank. If an ISL segmentation or other problem is indicated, go
to MAP 0000: Start MAP on page 3-6 to isolate the problem. If no
problems are indicated, installation tasks are complete.
Task 28: Register with the McDATA File Center
To complete the installation, register with the McDATA File Center
web site to receive e-mail updates and access the following:
• Technical publications.
• Firmware and software upgrades.
• Technical newsletters.
• Release notes.
To register with the McDATA File Center:
