McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Diagnostics
.

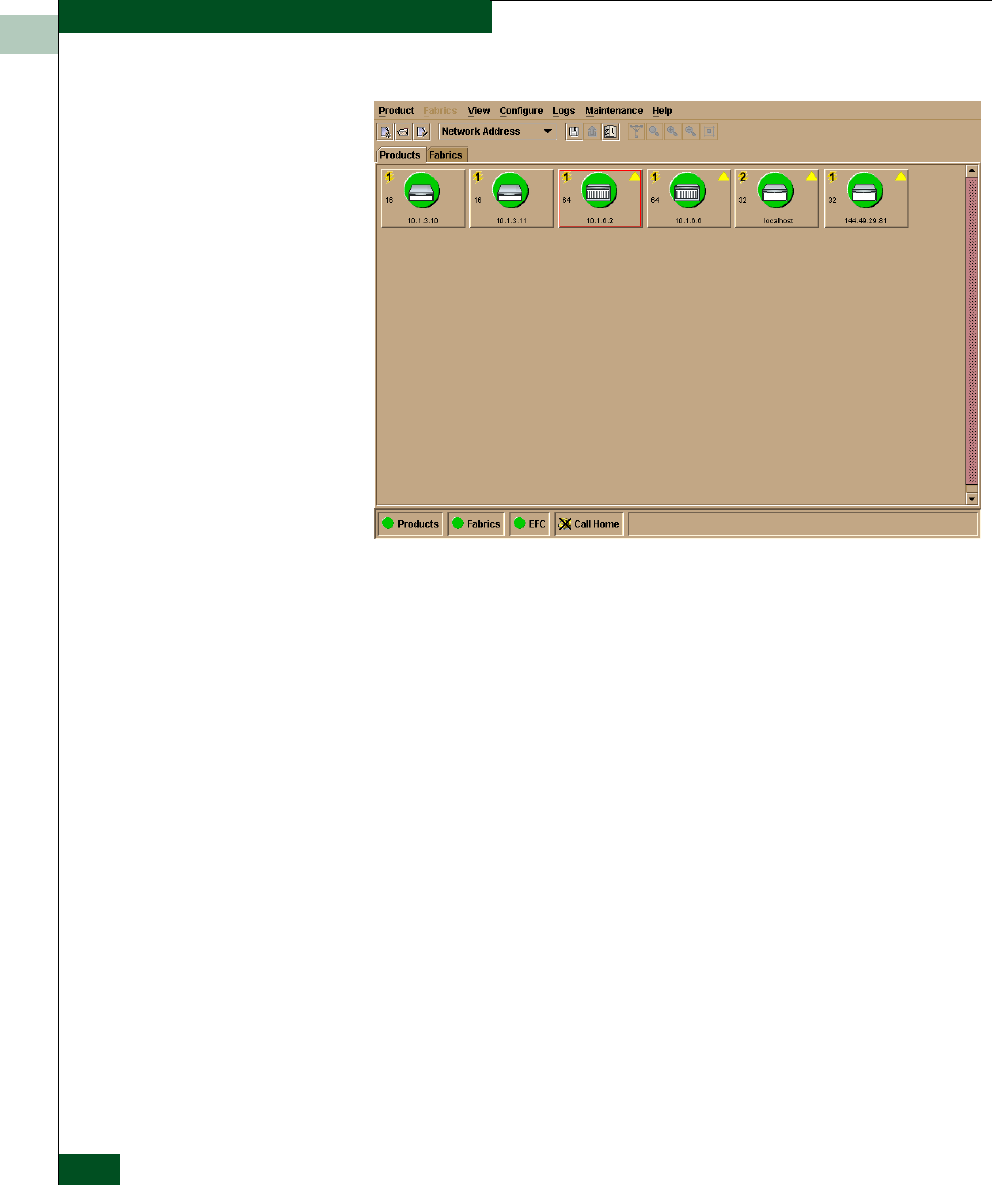

Figure 3-3 EFC Manager Product View
Did the Product View display and does the EFC Manager application
appear operational?
YES NO
↓ An EFC Server hardware problem is indicated. Event codes
are not recorded. Go to MAP 0800: Server Hardware
Problem Determination on page 3-107.
7
Inspect the alert panel at the lower left corner of the Product View.
The indicator shows the status of managed switches or the status of
the link between the EFC Server and managed switches as follows:
• A green circle indicates all switches are operational.
• A yellow triangle indicates at least one switch is operating in
degraded mode.
• A red diamond with yellow background indicates at least one
switch is not operational.
• A grey square indicates the status of at least one switch is
unknown
