3
MAP 0000: Start MAP
3-21
Diagnostics
38
Boot the web browser PC.
a. Power on the PC in accordance with the instructions delivered
with the PC. The Windows desktop appears.
b. Launch the PC browser application by double-clicking the
appropriate icon at the Windows desktop.
c. At the Netsite field (Netscape Navigator) or Address field
(Internet Explorer), type http://xxx.xxx.xxx.xxx, where
xxx.xxx.xxx.xxx is the IP address of the switch (obtained in step
1). The Username and Password Required dialog box appears.

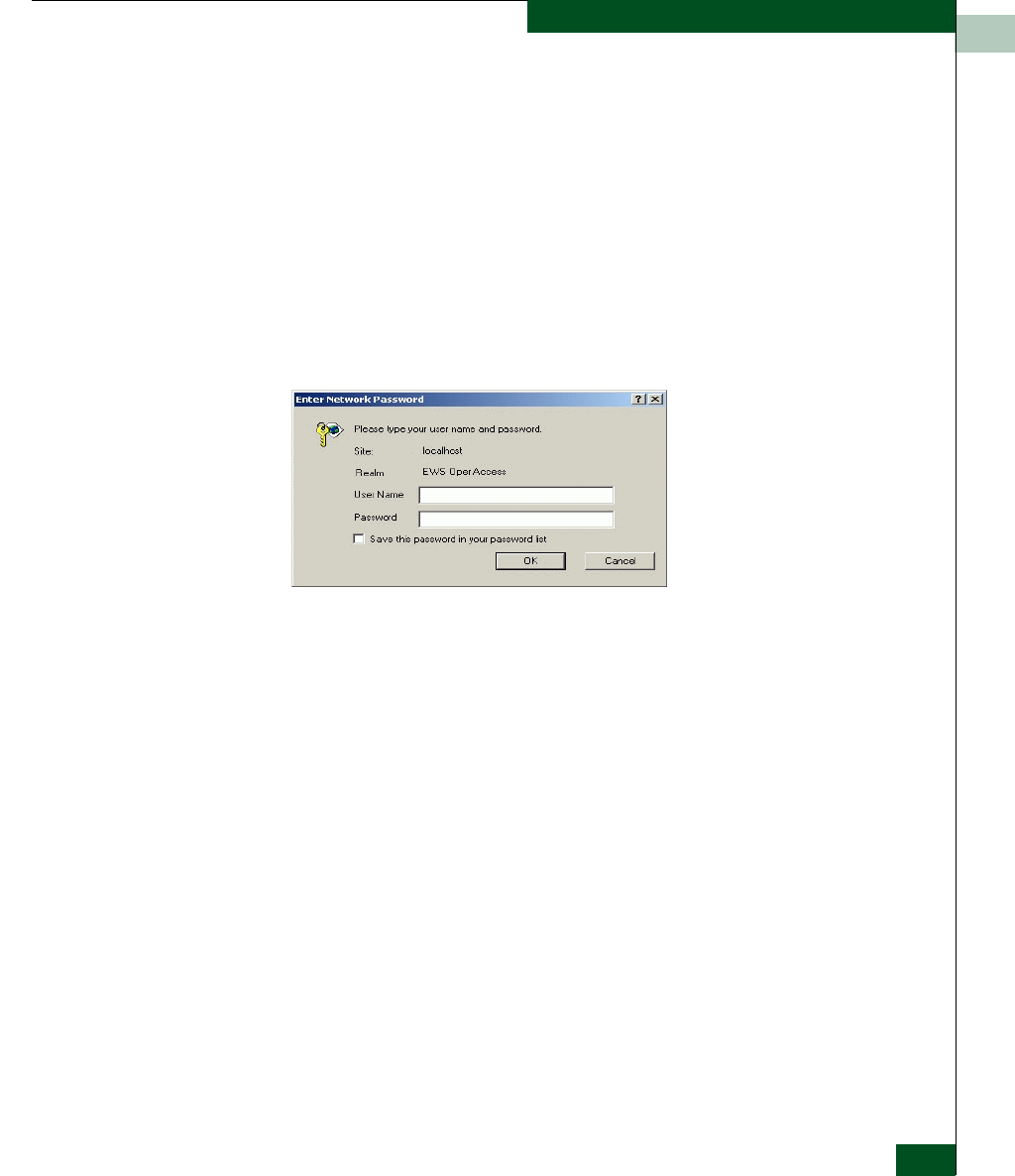

Figure 3-7 Username and Password Required Dialog Box
d. Type the user name and password obtained in step 1, and click
OK. The EFCM Basic Edition interface opens with the View
panel (Switch tab) displayed.
*Continue.
39
Does the EFCM Basic Edition interface appear operational with the
View panel displayed?
NO YES
↓ Go to step 45.
40
A Page cannot be found, Unable to locate the server, HTTP 404 -
file not found, or other similar message appears. The message
indicates the web browser PC cannot communicate with the switch
because:
