3
MAP 0300: Console Application Problem Determination
3-37
Diagnostics
c. Select (highlight) the McDATA Enterprise Fabric Connectivity
Manager entry and click End Task. The EFC Manager
application closes.
Continue to the next step.
3
Attempt to clear the problem by rebooting the EFC Server or
customer-supplied server PC. If the customer-supplied server does
not use the Windows 2000 operating system, refer to the supporting
documentation to reboot the server.
a. At the Windows 2000 desktop, click Start at the left side of the
task bar (bottom of the desktop), then select Shut Down. The
Shut Down Windows dialog box displays (Figure 3-10 on
page 3-37).

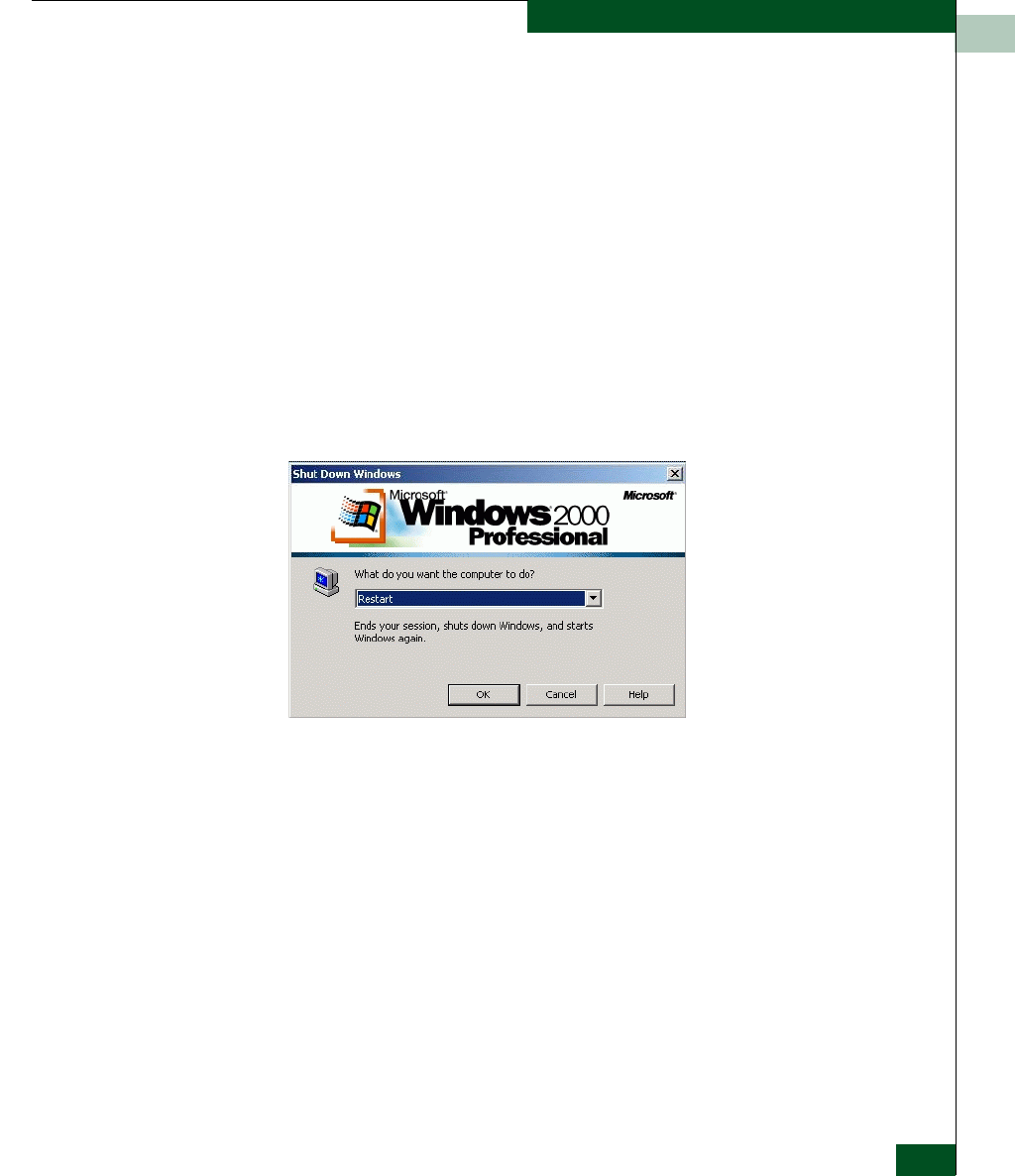

Figure 3-10 Shut Down Windows Dialog Box
b. Select the Shut Down option from the list box and click OK. The
EFC Server powers down.
c. Wait approximately 30 seconds and press the power button on
the LCD panel to power on the server and perform POSTs.
During POSTs:
1. The green LCD panel illuminates.
2. The green HDD LED blinks momentarily, and processor
speed and random-access memory information display
momentarily at the LCD panel.
3. After a few seconds, the LCD panel displays the following
message pertaining to boot sequence selection
(Figure 3-11):
