3
3-44
McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Diagnostics
• Hard disk capacity.
• Virtual and physical memory capacity.
c. After successful POST completion, the LCD panel displays a
Welcome!! message, then continuously cycles through and
displays server operational information.
d. After rebooting the server at the LCD panel, log on to the EFC
Server’s Windows 2000 desktop through a LAN connection to a
browser-capable PC. Refer to Access the Management Server
Desktop on page 2-30 for instructions.The EFC Management
Services and EFC Manager applications start and the EFC
Manager Login dialog box displays (Figure 3-15 on page 3-44).
e. At the EFC Manager Login dialog box, type a user name,
password, and EFC Server name (obtained in MAP 0000: Start
MAP on page 3-6, and all are case sensitive), and click Login.
The application opens and the Products View displays.

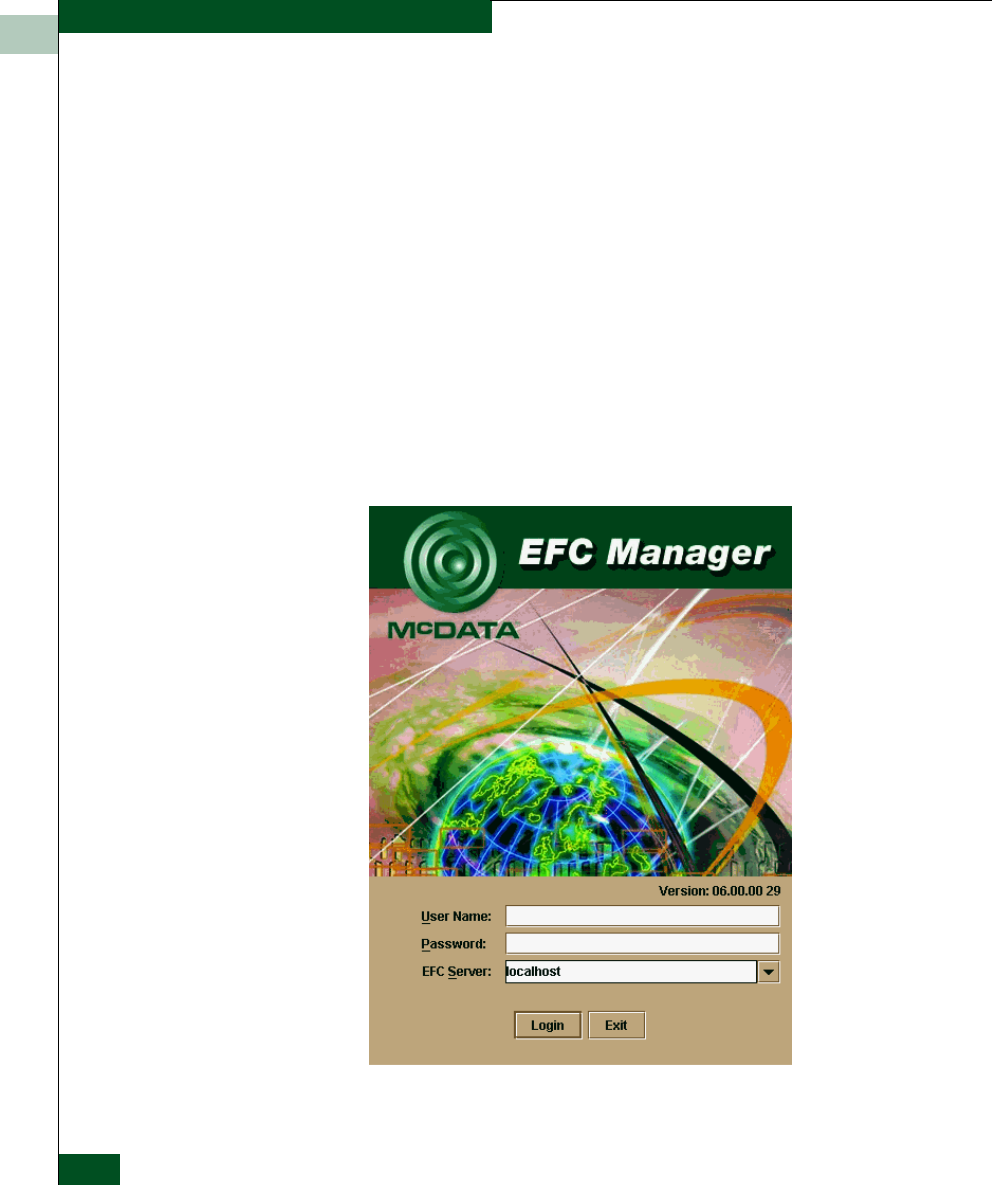

Figure 3-15 EFC Manager Login Dialog Box
