McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Diagnostics

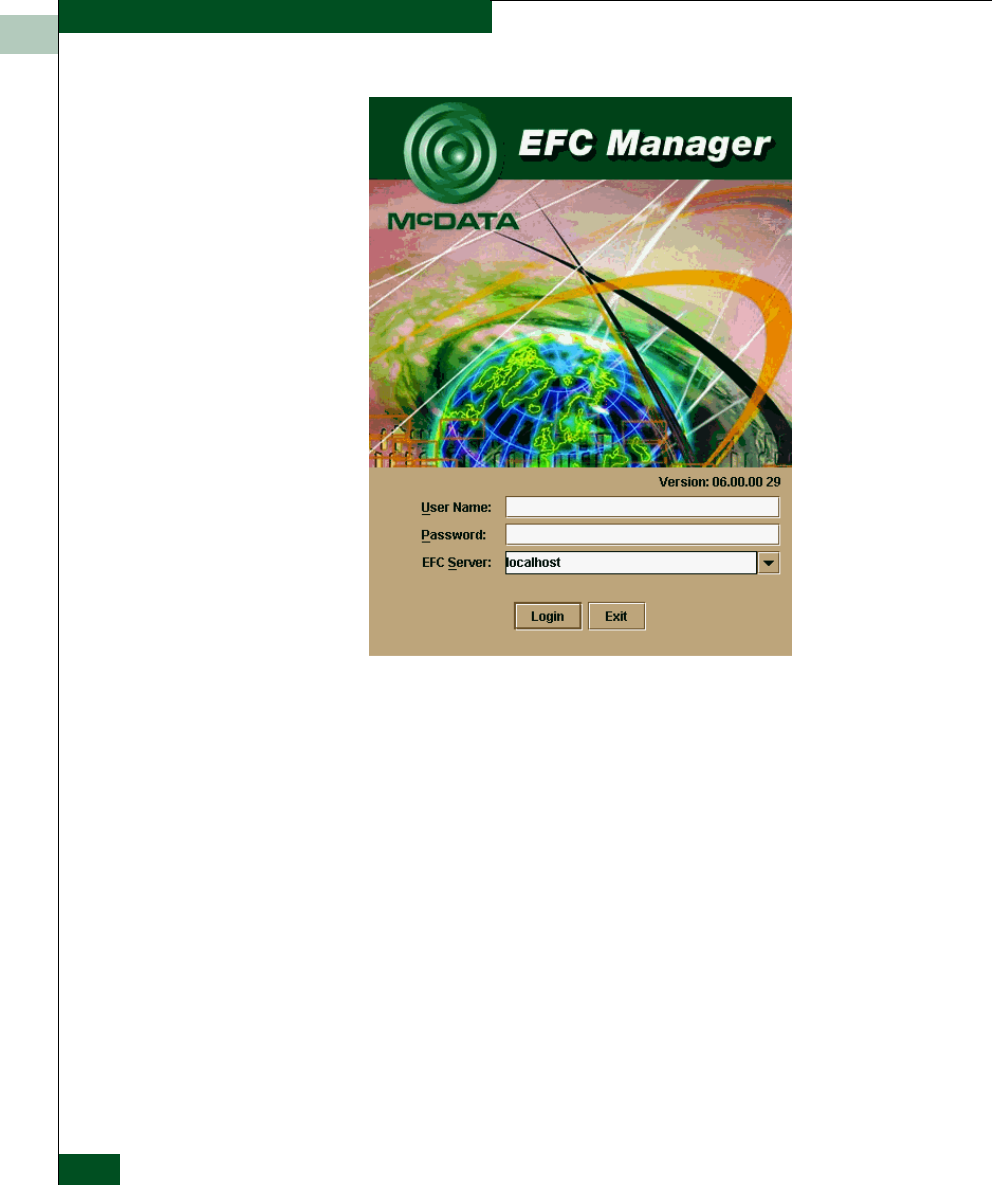

Figure 3-17 EFC Manager Login Dialog Box
5
Did the switch-to-EFC Server Ethernet connection recover?
NO YES
↓ The switch-to-EFC Server connection is restored and
appears operational.
Contact the next level of support.
6
Is fault isolation being performed at the switch or EFC Server?
YES NO
↓ Remote fault isolation is being performed through the EFCM
Basic Edition interface. Go to step 26.
