The port connection conflicts with the configured port type. Either an
expansion port (E_Port) is incorrectly cabled to a Fibre Channel
device or a fabric port (F_Port) is incorrectly cabled to a fabric
element (director or switch).
a. At the EFC Server’s Hardware View, click the Configure icon at
the navigation control panel and select Ports from the Configure
menu. The Configure Ports dialog box (open systems mode)
displays.

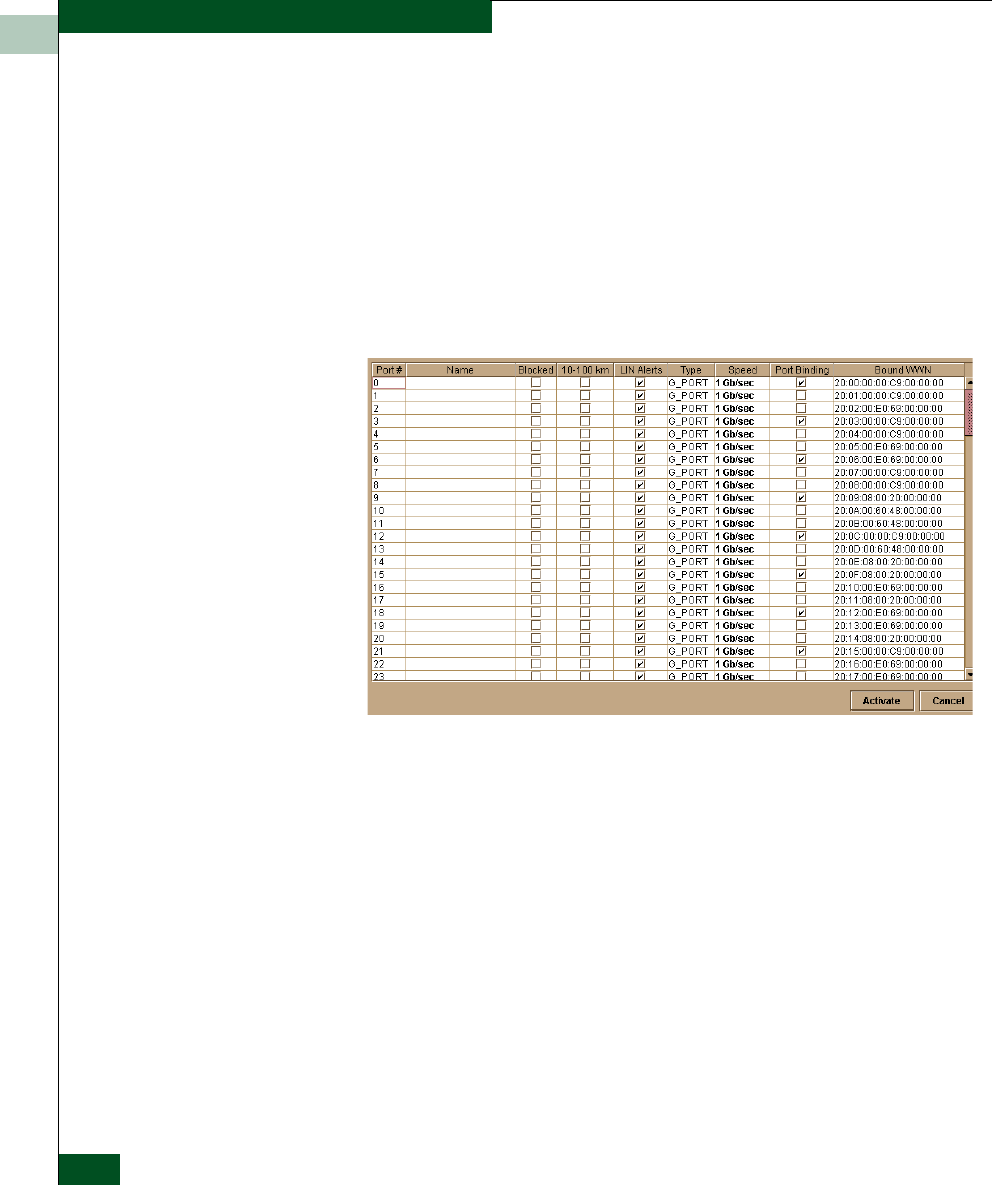

Figure 3-34 Configure Ports Dialog Box
b. Use the vertical scroll bar as necessary to display the
information row for the port indicating an invalid attachment.
c. Select (click) the Typ e field and configure the port from the list
box as follows:
• Select fabric port (F_Port) if the port is cabled to a device
(node).
• Select expansion port (E_Port) if the port is cabled to a fabric
element (director or switch) to form an ISL.
d. Click the Activate button to save the configuration information
and close the dialog box.
