3
MAP 0700: Fabric, ISL, and Segmented Port Problem Determination
3-93
Diagnostics
a. At the Hardware View, click the port graphic. The Port Properties
dialog box displays.
b. Inspect the Operational State field.

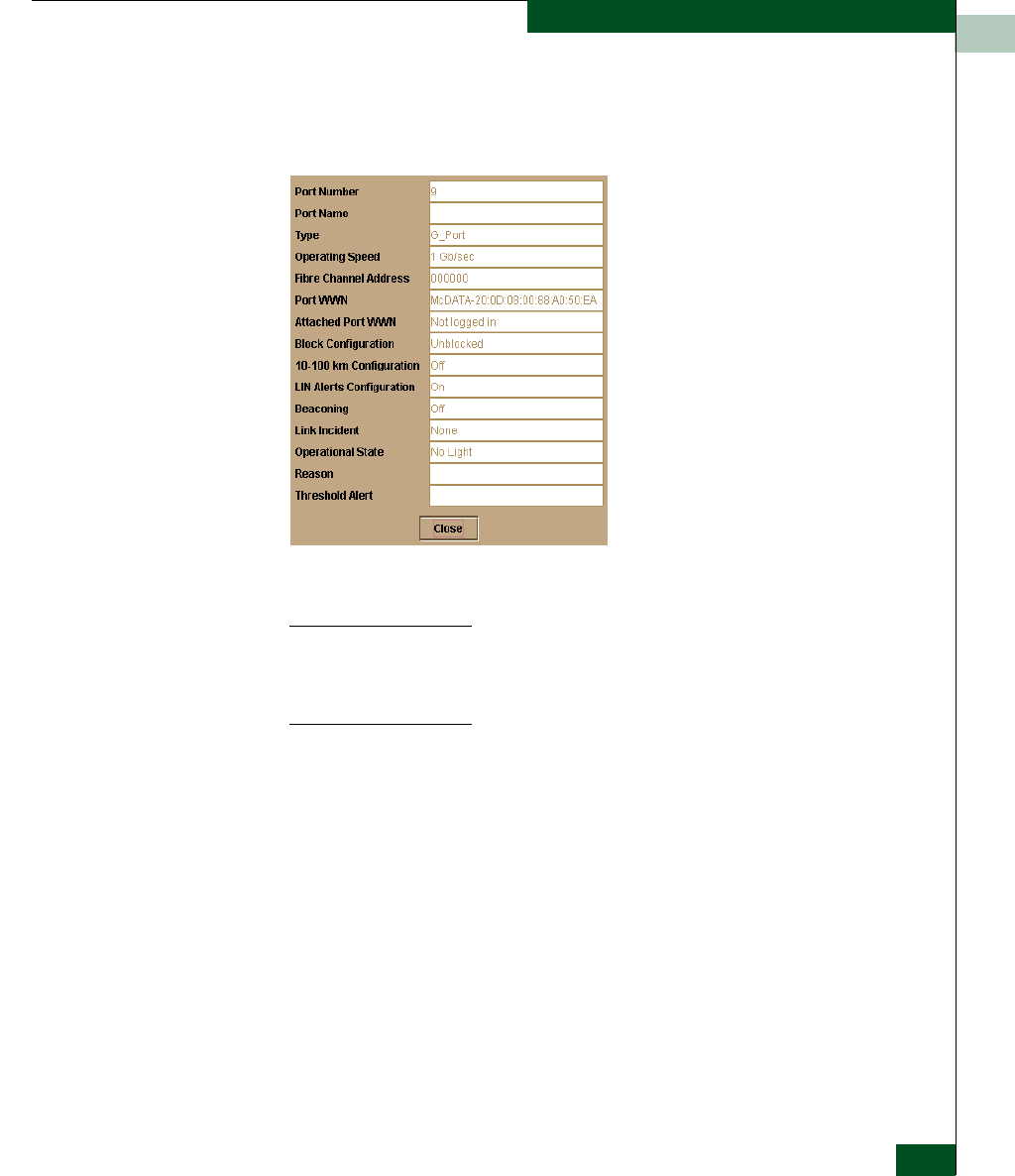

Figure 3-42 Port Properties Dialog Box
NOTE: If the Open Trunking feature is installed and additional item will
appear in the Port Properties dialog box, called Congested Threshold %. This
field displays the active congested threshold percentage currently configured
in the Configure Open Trunking dialog box.
Does the Operational State field indicate Segmented E_Port?
YES NO
↓ Analysis for a port failure or other link incident is not
described in this MAP. Go to MAP 0600: Port Failure and Link
Incident Analysis on page 3-71.
6
Inspect the Reason field fir the selected port at the Port Properties
dialog box.
Is the Reason Field blank or does it display an N/A message?
NO Yes
↓ The switch ISL appears to be operational. Exit MAP.
