3
3-98
McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Diagnostics
Parameters sub menu. The Configure Switch Parameters dialog box
displays.

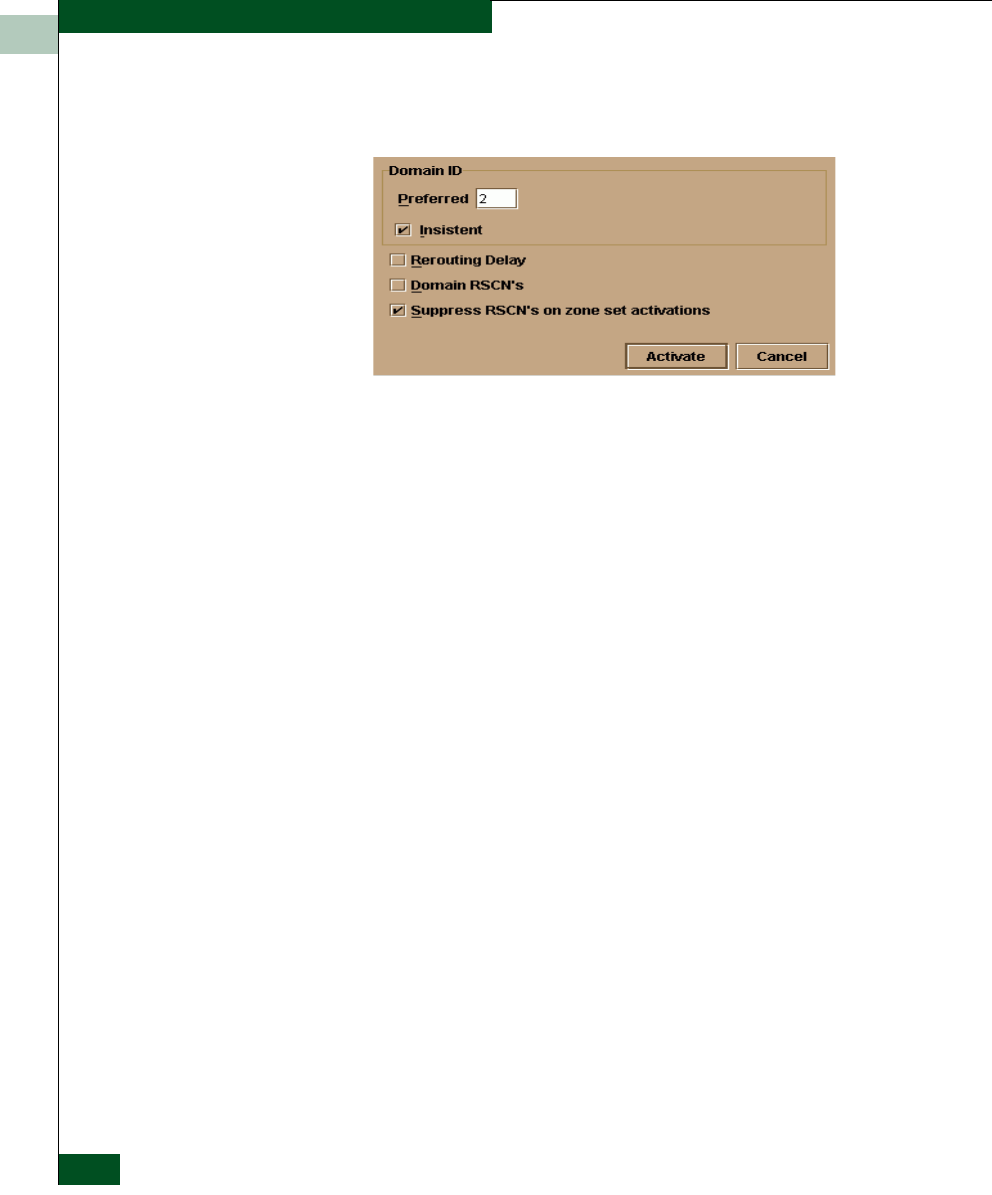

Figure 3-44 Configure Switch Parameters Dialog Box
d. Type the customer-determined preferred domain ID value, then
click Activate.
e. Repeat steps d and e at the Hardware View for the switch
attached to the segmented E-Port (second switch). Use a
different preferred domain ID value.
f. Set both switches online (Set Online State on page 4-44).
Did the domain ID change solve the problem and did both switches
join through the ISL to form a fabric?
NO YES
↓ The switches, associated ISL, and multiswitch fabric appear
operational.
Contact the next level of support.
14
The switch E_Port segmented because two switches have
incompatible zoning configurations. An identical zone name is
recognized in the active zone set for both switches, but the zones
contain different members.
a. Work with the system administrator to determine the desired
zone name change for the one of the affected switches.Zone
names must conform to the following rules:
• The name must be 64 characters or fewer in length.
• The first character must be a letter (a through z), upper or
lower case.
