4
Using Log Information
4-13
Repair Information
• Name
Name for the alert as configured through the Configure Threshold
Alerts dialog box.
•Port
Port number where the alert occurred.
•Type
The type of alert: transmit (TX) or receive (RX).
• Utilization %
Percent usage of traffic capacity. This is the percent of the port’s
throughput capacity achieved by the measured throughput. This
setting constitutes the threshold value and is configured through
the Configure Threshold Alerts dialog box. For example, a value of
25 means that threshold occurs when throughput reaches 25
percent of the port’s capacity.
• Alert Time
The time that the utilization % must exist before an alert is
generated. This is set through the Configure Threshold Alerts dialog
box.
• Interval
The time interval during which the throughput is measured and
an alert can generate. This is set through the Configure Threshold
Alerts dialog box.

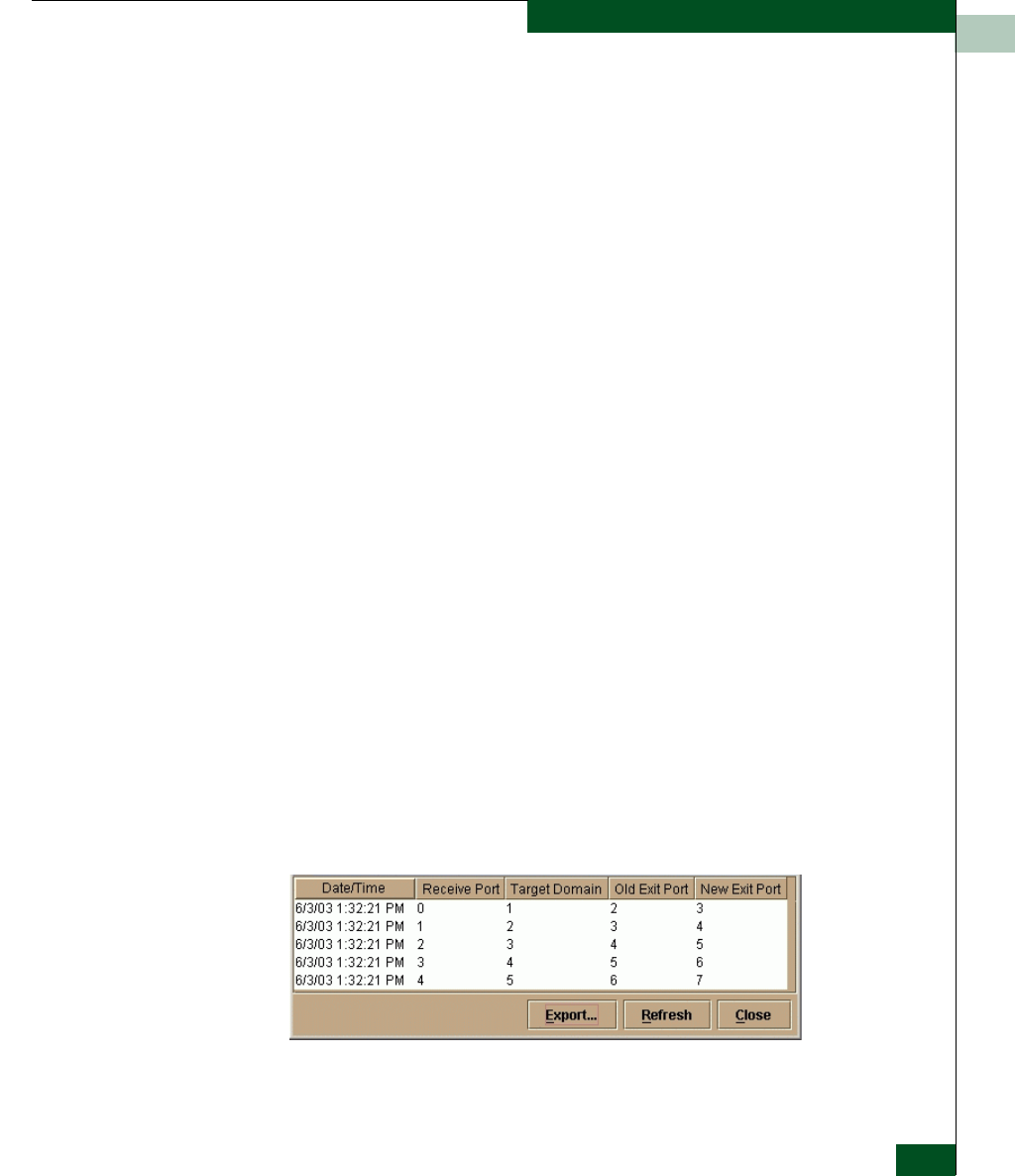

Open Trunking Log To open the Open Trunking Log, select the Open Trunking Log option
from the Logs menu at the Hardware View. The log displays
(Figure 4-7). The log can also be opened from the Port List View, Node
List View, Performance View, or FRU List View.
Figure 4-7 Open Trunking Log
