McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Repair Information

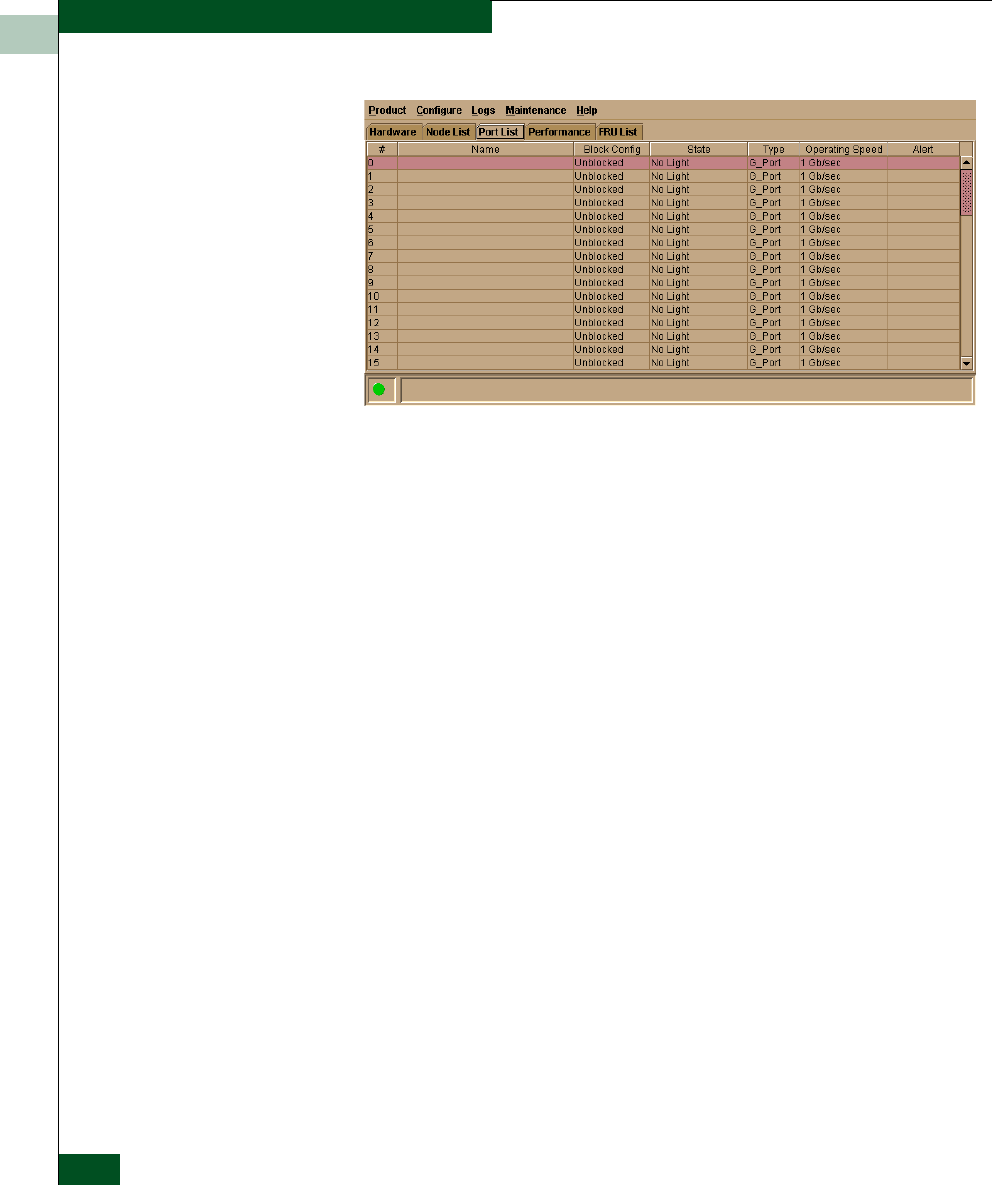

Figure 4-8 Port List View
The port row provides status information in the following columns:
• Port # - the port number (0 through 31).
• Addr - the switch logical port address in hexadecimal format
(FICON management style only).
• Name - the port name configured through the Configure Ports
dialog box.
• Blocked Config - the status (Blocked or Unblocked) of the port.
• State - the state of the port. Valid states are:
— Online, offline, or testing.
— Beaconing.
— Invalid Attachment.
— Link incident or link reset
— No light, not operational, or port failure.
— Segmented E_Port.
• Type - The type of port. Valid port types are a generic port
(G_Port) that is not connected to a Fibre Channel device or
switch, therefore light is not transmitted; fabric port (F_Port) that
is connected to a device; or an expansion port (E_Port) that is
connected to another switch to form an interswitch link (ISL).
