4
FRU List View
4-19
Repair Information
• Position-a number representing the FRU chassis position. The
chassis (slot) position for a nonredundant FRU is 0. The chassis
positions for redundant FRUs are 0 and 1. The chassis positions
for UPM cards are 0 through 15 inclusive.
• Status-the FRU status (Active or Backup).
• Part Number-the FRU part number.
• Serial Number-the FRU serial number.
Node List View
The Node List View (Figure 4-10) displays information about all
devices attached to the switch through node ports (N_Ports). The
information is useful to maintenance personnel for fault isolation and
repair verification.
To open the Node List View, select Node List from the View menu on the
navigation control panel.

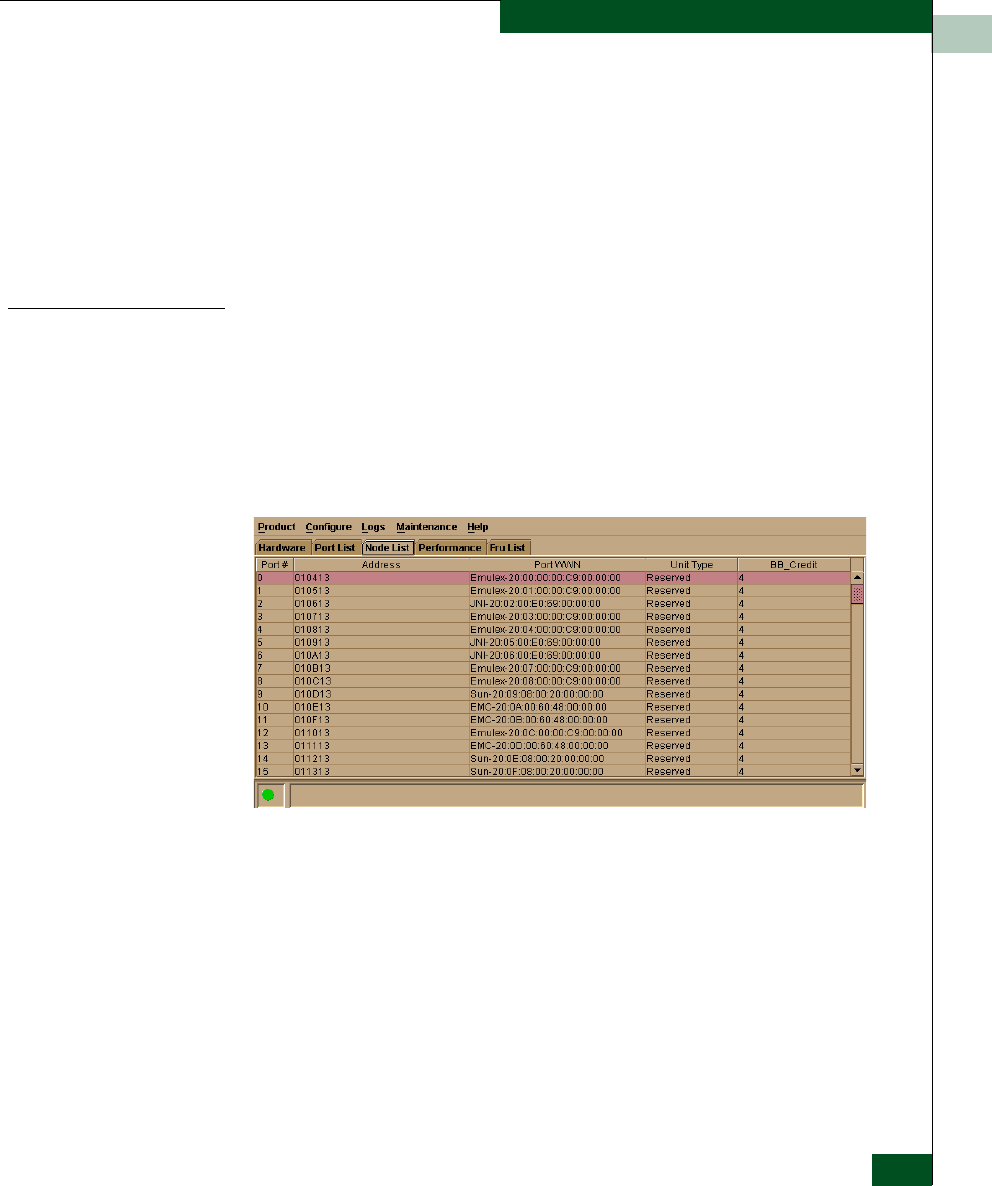

Figure 4-10 Node List View
The Node List View contains the following columns:
• Port # - the port number (0 through 31). Only ports attached to a
device are displayed.
• Addr - the switch logical port address (05 through 43 inclusive) in
hexadecimal format.
• Node Type - the type of attached device. This information is
supplied by the device (if supported). Node types include:
— Unknown or other.
