Collecting Maintenance Data
4-37
Repair Information

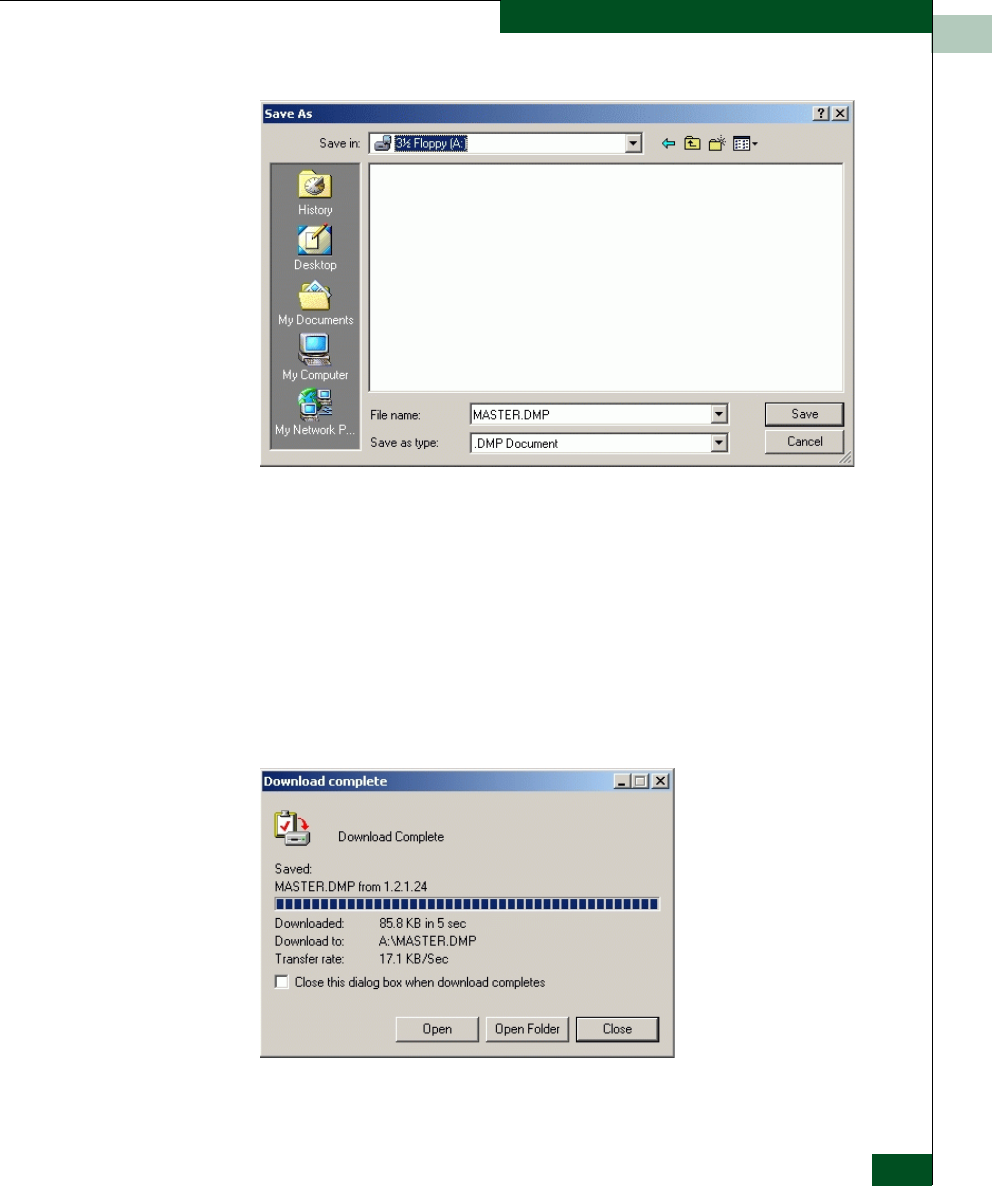

Figure 4-18 Save As Dialog Box
5. Insert a blank diskette in the floppy drive of the browser PC.
6. At the Save As dialog box, select the floppy drive (A:\) from the
Save in drop-down menu, type a descriptive name for the dump
file in the File name field, and click Save.
7. The Download complete dialog box displays (Figure 4-19) with a
progress bar that shows percent completion of the dump file
download process.
Figure 4-19 Download Complete Dialog Box
