McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Repair Information

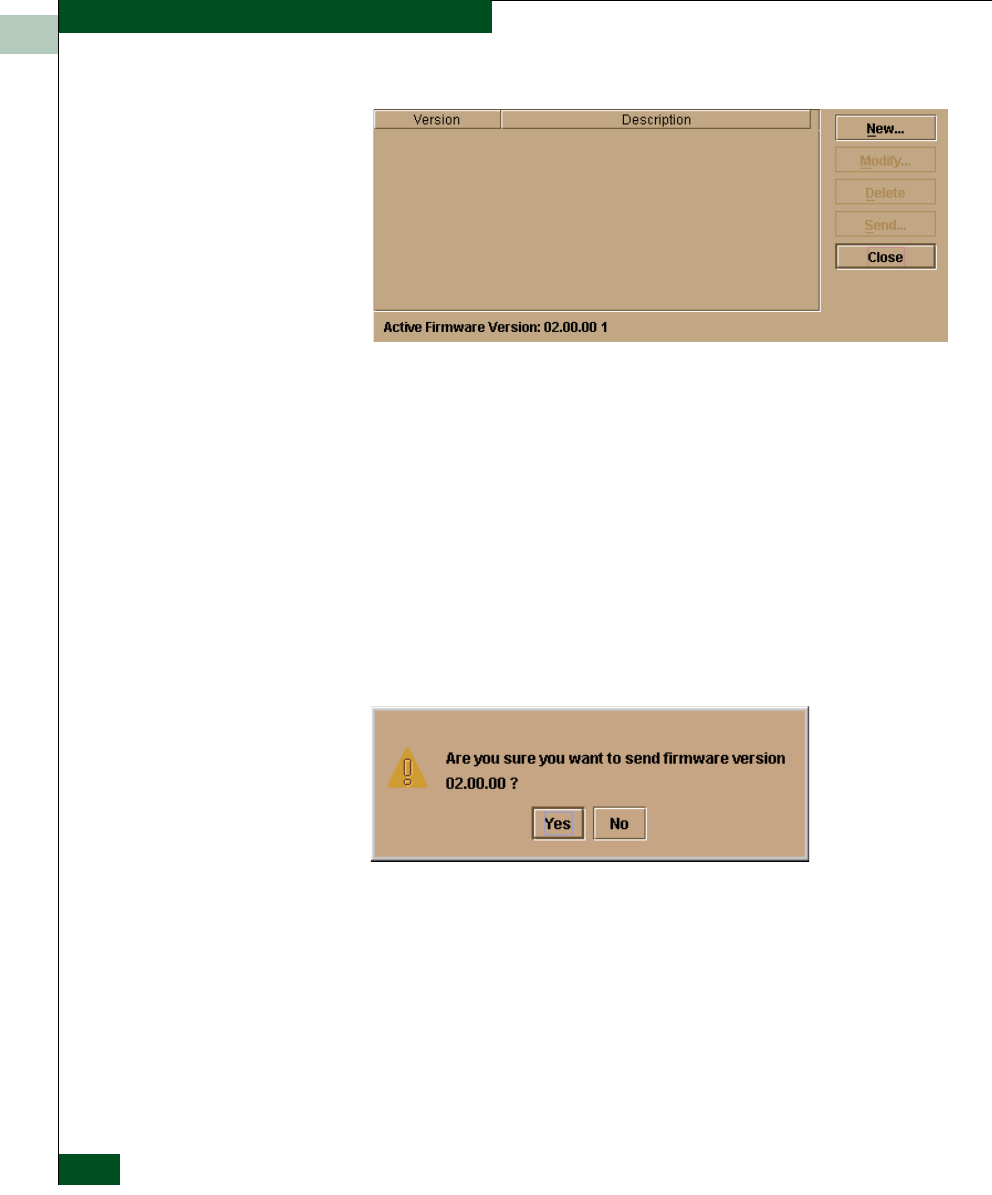

7. Select the firmware version to be downloaded and click Send. The
send function verifies existence of certain switch conditions
before the download begins. If an error occurs, a message
displays indicating the problem must be fixed before the
firmware download. Conditions that terminate the process
include:
— The firmware version is being installed to the switch by
another user.
— The switch-to-EFC Server link fails or times out.
If a problem occurs and a corresponding message displays, go to
MAP 0000: Start MAP on page 3-6 to isolate the problem. If no
error occurs, the Send Firmware confirmation box displays.
8. Click Yes. The Send Firmware dialog box displays.
As the download begins, a Sending Files message displays at the
top of the dialog box. This message remains for a few moments as
a progress bar travels across the dialog box to show percent
completion of the download. As the download progresses, a
Writing data to FLASH message displays. This message remains
as the progress bar continues to travel across the dialog box. The
bar progresses to 100% when the last file is transmitted to the CTP
