4
Manage Configuration Data
4-55
Repair Information
card. The switch then performs an IPL, during which the
switch-to-EFC Server link drops momentarily and the following
occur at the Product Manager application:
— As the network connection drops, the Status table turns
yellow, the Status field displays No Link, and the State field
displays a reason message.
— The alert panel at the bottom of the navigation control panel
displays a grey square, indicating switch status is unknown.
— Illustrated FRUs in the Hardware View disappear, and appear
again as the connection is re-established.

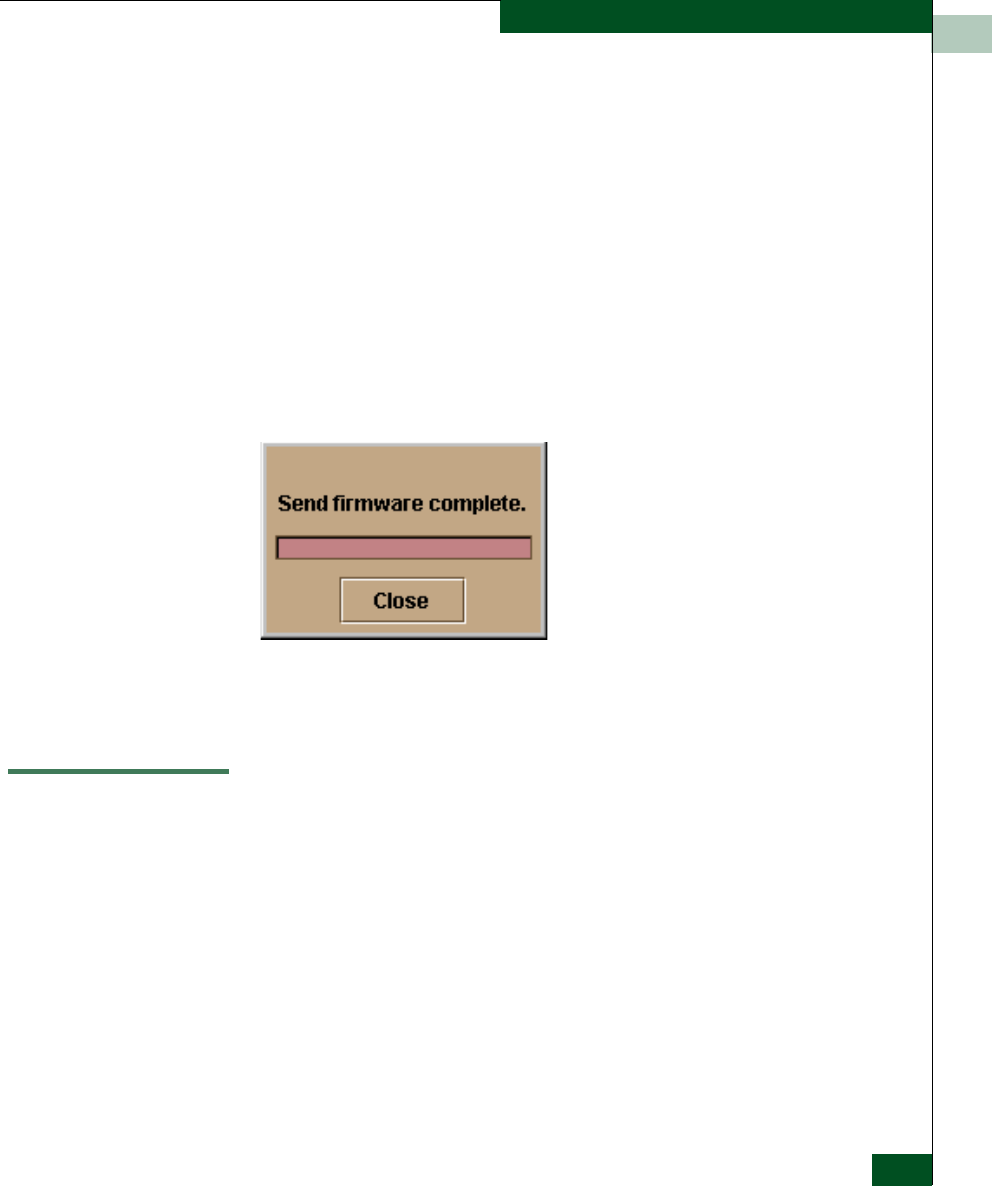

After the IPL, a Send firmware complete message displays as
shown below.
9. Click Close to close the dialog box.
10. Click Close to close the Firmware Library dialog box and return to
the Hardware View.
Manage Configuration Data
The Product Manager application provides maintenance options to
back up, restore, or reset the configuration file stored in nonvolatile
random-access memory (NV-RAM) on the switch CTP card.
Configuration data in the file include:
• Identification data (switch name, description, and location).
• Port configuration data (port names, blocked states, and port
validation, auto-LIP, and LIN alert configurations).
• Operating parameters (loop mode, error-detect time-out value
(E_D_TOV), resource allocation time-out value (R_A_TOV), and
preferred domain ID).
