General Information
• TightVNC™ Viewer Version 1.2.7 client-server software control
package that provides remote network access (through a standard
web browser) to the EFC Server desktop.
• 1,024 megabyte (MB) or greater RAM.
• 40 gigabyte (GB) or greater internal hard drive.
• 1.44 MB 3.5-inch slim-type disk drive and slim-type compact
disk-rewritable (CD-RW) drive.
• 56K internal modem.
• Two 10/100 Mbps Ethernet adapters with RJ-45 connectors.
Ethernet Hub
(Optional)
The management server and managed switches connect through a
10/100 Base-T Ethernet hub. Figure 1-3 illustrates the 24-port hub.
.

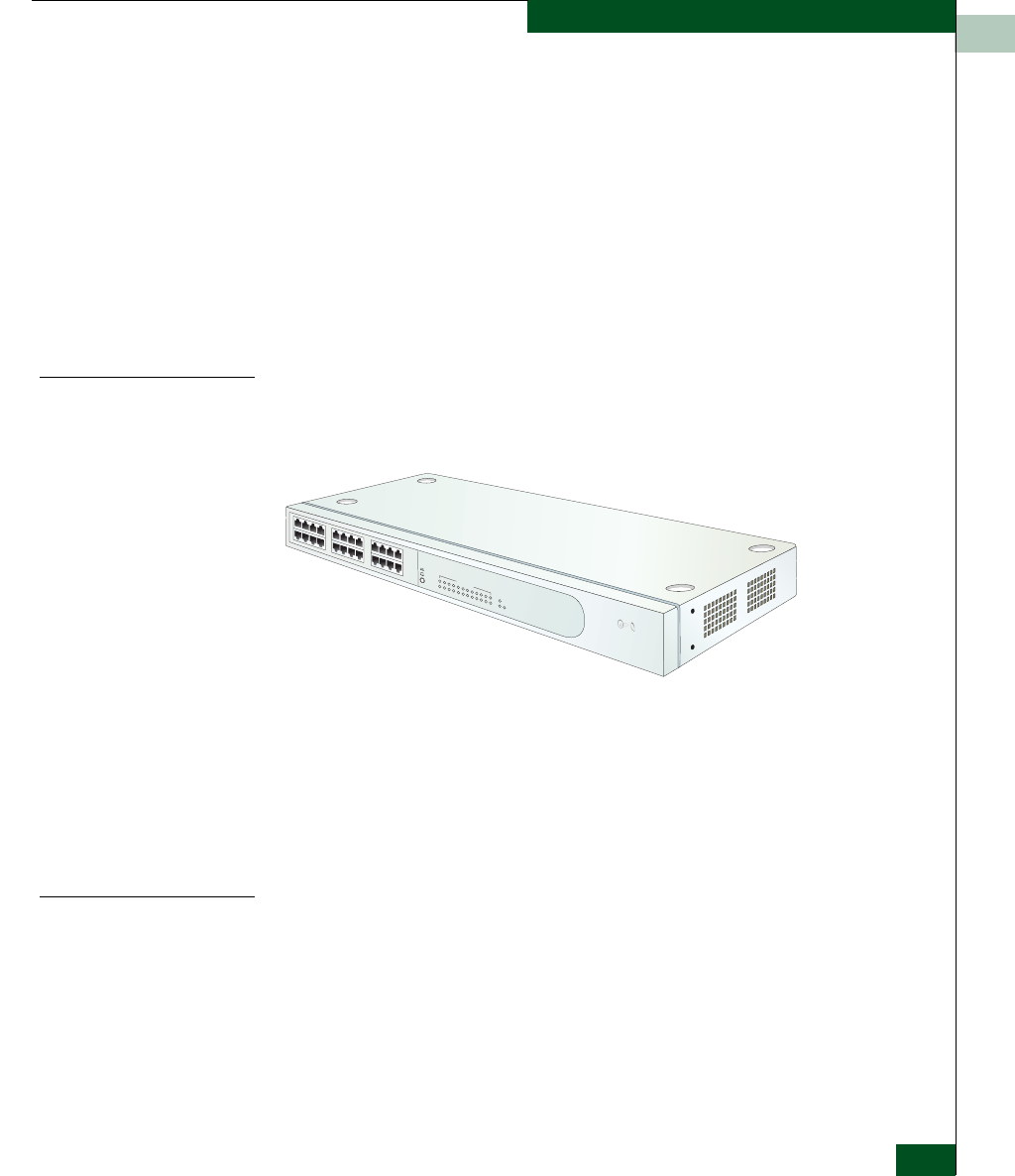

Figure 1-3 24-Port Ethernet Hub
Hubs can be interconnected to provide additional connections as
more switches (or other McDATA managed products) are installed
on a network. Multiple hubs are daisy-chained by attaching RJ-45
Ethernet patch cables and configuring each hub through a medium-
dependent interface (MDI) switch.
EFCM Basic Edition
Interface
The EFCM Basic Edition interface provides a GUI accessed through
the Internet (locally or remotely) to manage, monitor, and isolate
problems for the Switch. When the interface opens, the default
display is the View panel.
Task selection tabs appear at the top of the panel, a graphical
representation of the switch hardware (front and rear) appears at the
right side of the panel, and menu selections (View, Configure, Monitor,
®
3
