McDATA® Sphereon 3032 and 3232 Installation and Service Manual
Consolidating EFC Servers in a Multiswitch Fabric
a. Change the IP address of a switch through the maintenance
port at the rear of the chassis.
b. If the IP address is changed at a switch, the IP address must
also be changed at the EFC Manager application (EFC Server)
(Task 13: Configure the Switch to the Management Application on
page 2-51).
5. Define all switches formerly managed by client backup PCs to the
EFC Server. Repeat this step for all switches defined to the EFC
Server.

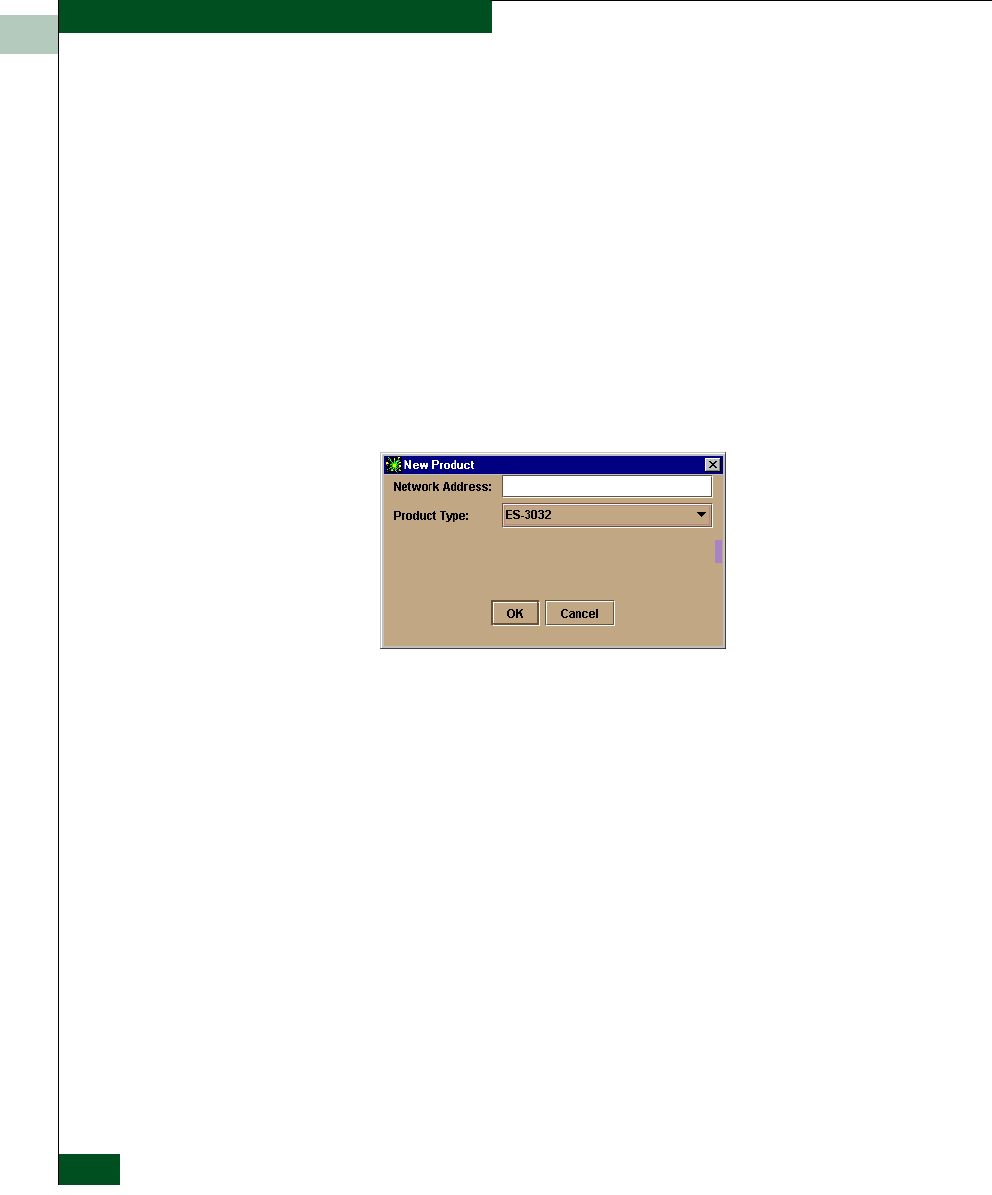

a. At the EFC Server, right-click in a blank area of the Product
View and select New or select New product from the
Configuration menu. The New Product dialog box displays
b. Type the IP address of the switch.
c. Select Sphereon 3032 or Sphereon 3232 from the Product Type
field and click OK. A new switch icon displays at the Product
View.
6. Delete all consolidated switches from the Product View of all client
backup PCs:
a. At the Product View, right-click a switch icon to be deleted and
choose the Delete option.
b. Click Yes at the confirmation window.
7. To interconnect the hubs in a star topology.
a. To connect the top hub to the middle hub in the stack, connect
an RJ-45 patch cable from port 24 of the top hub to port 12 of
the middle hub.
