Consolidating EFC Servers in a Multiswitch Fabric

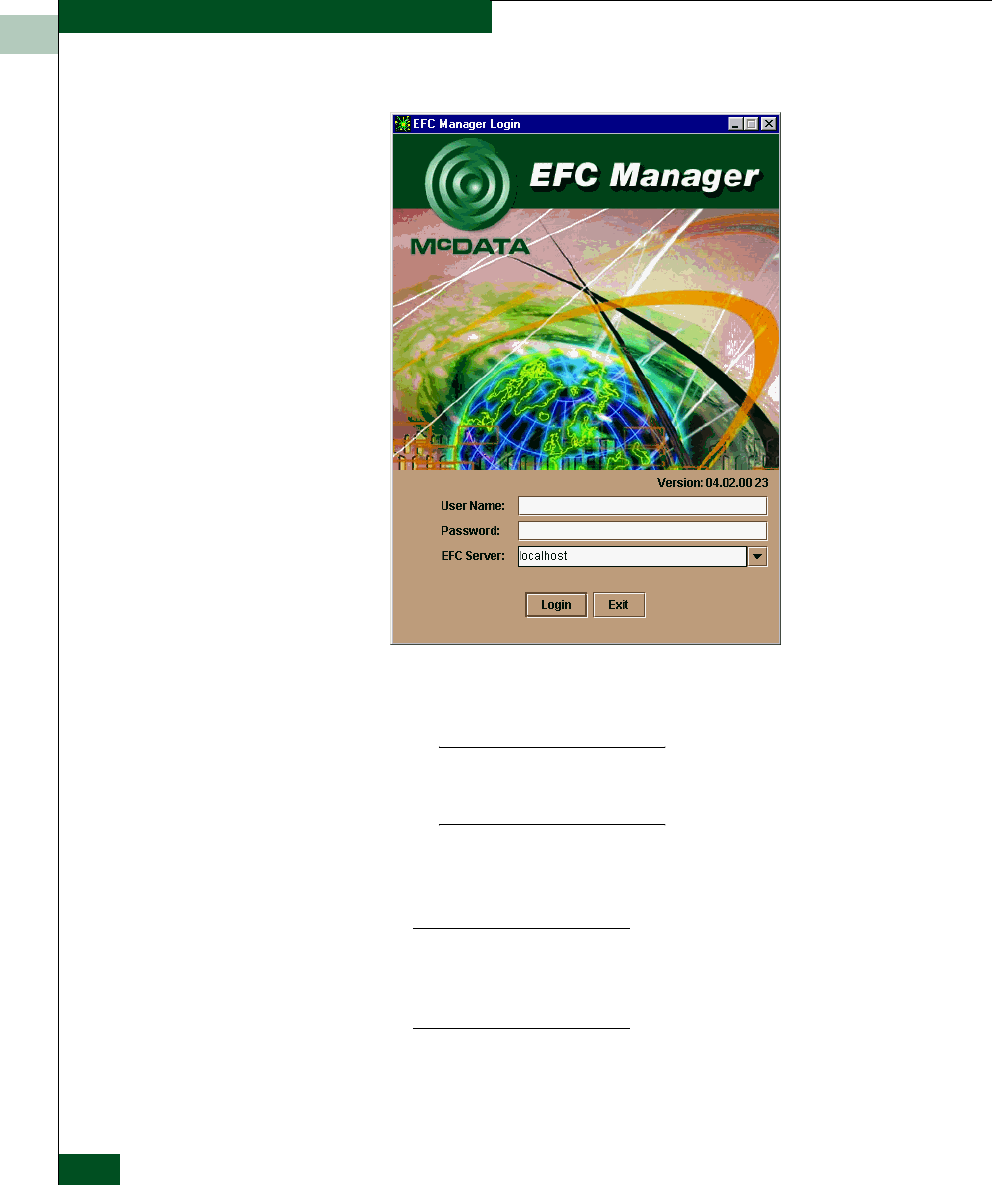

10. Login to the EFC Manager application as follows:
a. Type the user name and password.
NOTE: The default user name is Administrator and the default
password is password. The user name and password are
case-sensitive.
b. At the EFC Server field, select localhost from the list box.
c. Click Login. The Product View displays.
NOTE: When services restart on the new EFC Server PC, expect to see a
number of event messages pertaining to corrupted log files. Mark these
events as viewed, and disregard them. The messages are caused by the
change in server names due to the reconfiguration.
