McDATA® Sphereon 3032 and 3232 Fabric Switches Installation and Service Manual
Installation Tasks

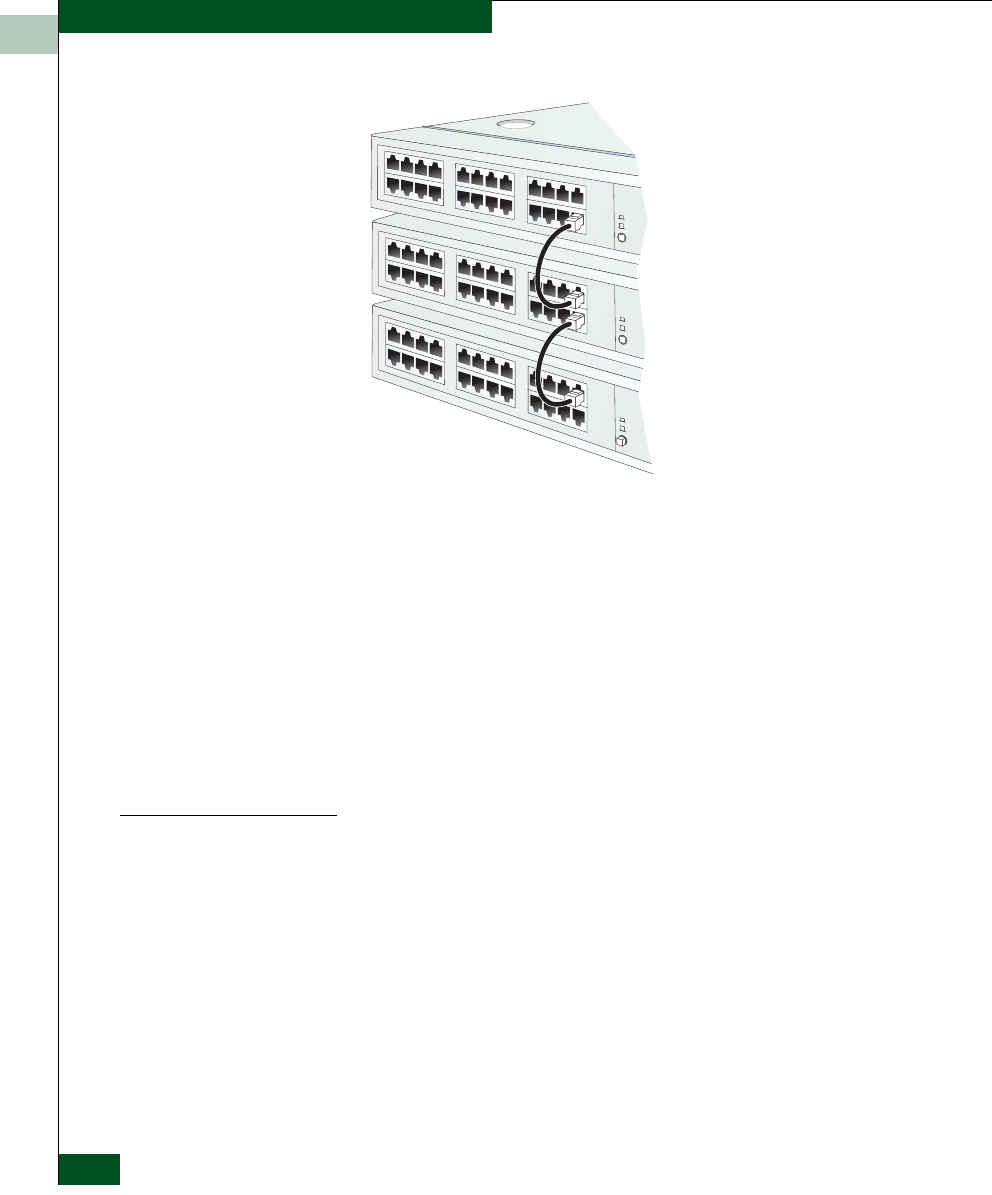

Figure 2-2 Patch Cable and MDI Selector Configuration
5. Connect the U. S. power cord to the receptacle at the rear of each
hub and to an AC power strip (a power strip is provided with the
optional management server). Use an 18-inch electrical extension
cord (provided) if required.
6. Connect the AC power strip to a facility power outlet. Power for
each hub switches on when the strip is connected to facility AC
power.
7. Inspect the front panel of each hub. Ensure each green Power
light-emitting diode (LED) illuminates.
Rack-Mount
Installation
Perform the following steps to install and configure up to three
Ethernet hubs in a Fabricenter equipment cabinet or a customer-
supplied 19-inch equipment rack. A pointed instrument (pencil tip or
bent paper clip), #2 Phillips screwdriver, and 1/8-inch Allen wrench
are required.
1. Secure one mounting bracket to each side of the first hub as
shown in Figure 2-3 on page 2-11. Use the two brackets and four
pan-head Phillips screws (8/32 x 0.5-inch) provided.
