Task 2: Unpack, Inspect, and Install the Ethernet Hub (Optional)
2-11
Installation Tasks

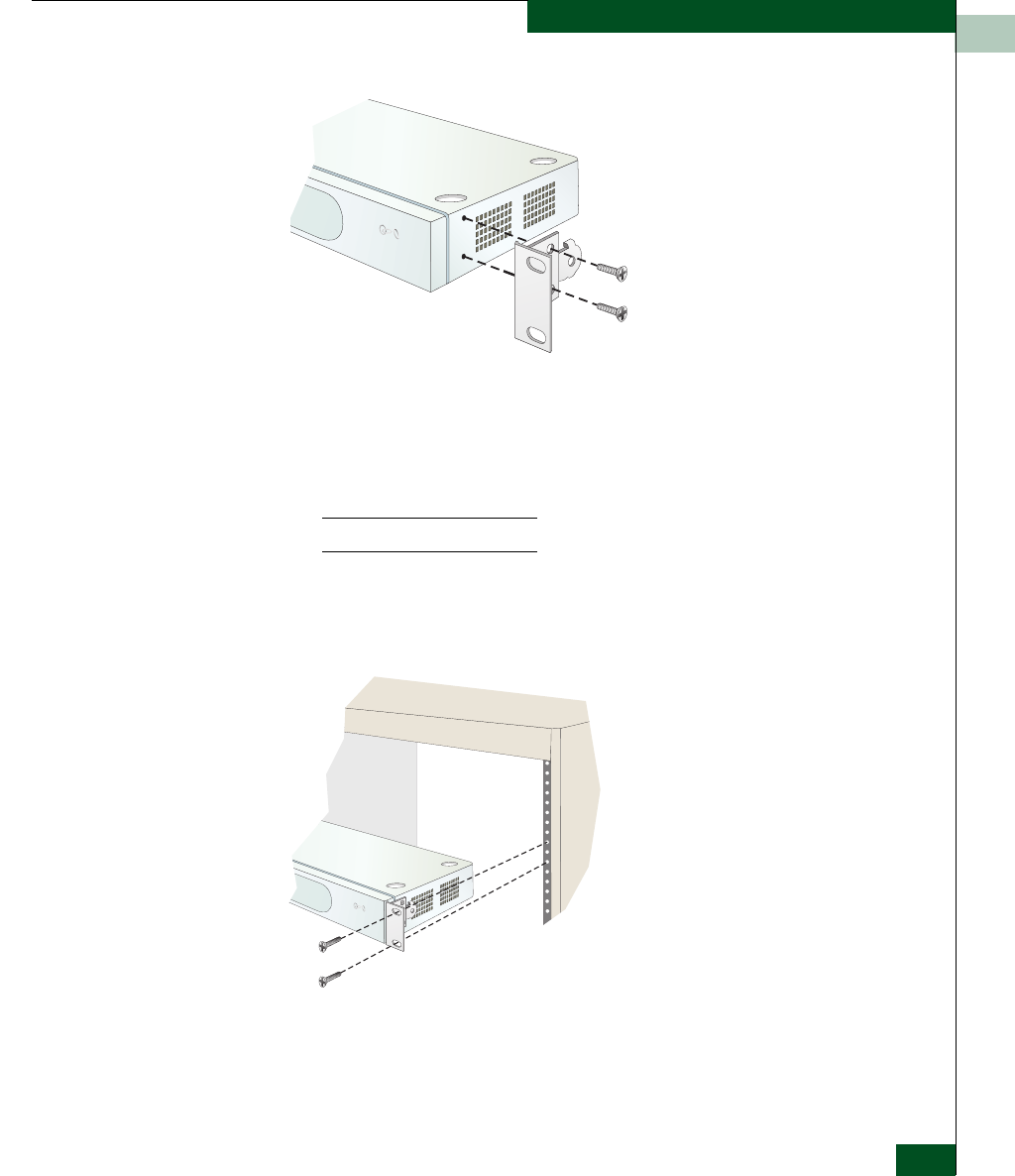

Figure 2-3 Mounting Bracket Installation (Ethernet Hub)
2. Position the first hub in the equipment rack as directed by the
customer. Align screw holes in the mounting brackets with screw
holes in the rack-mount standards.
NOTE: The hub is 1.75 inches, or one rack unit (1U) high.
3. Secure both sides of the hub to the rack-mount standards as
shown in Figure 2-4. Use the 1/8-inch Allen wrench and four
Allen-head mounting screws (10/32 x 0.5-inch) provided.
Figure 2-4 Rack Installation (Ethernet Hub)
4. Repeat step 1 through step 3 for the second and third hubs.
®
