2
Task 4: Configure Network Information
2-19
Installation Tasks

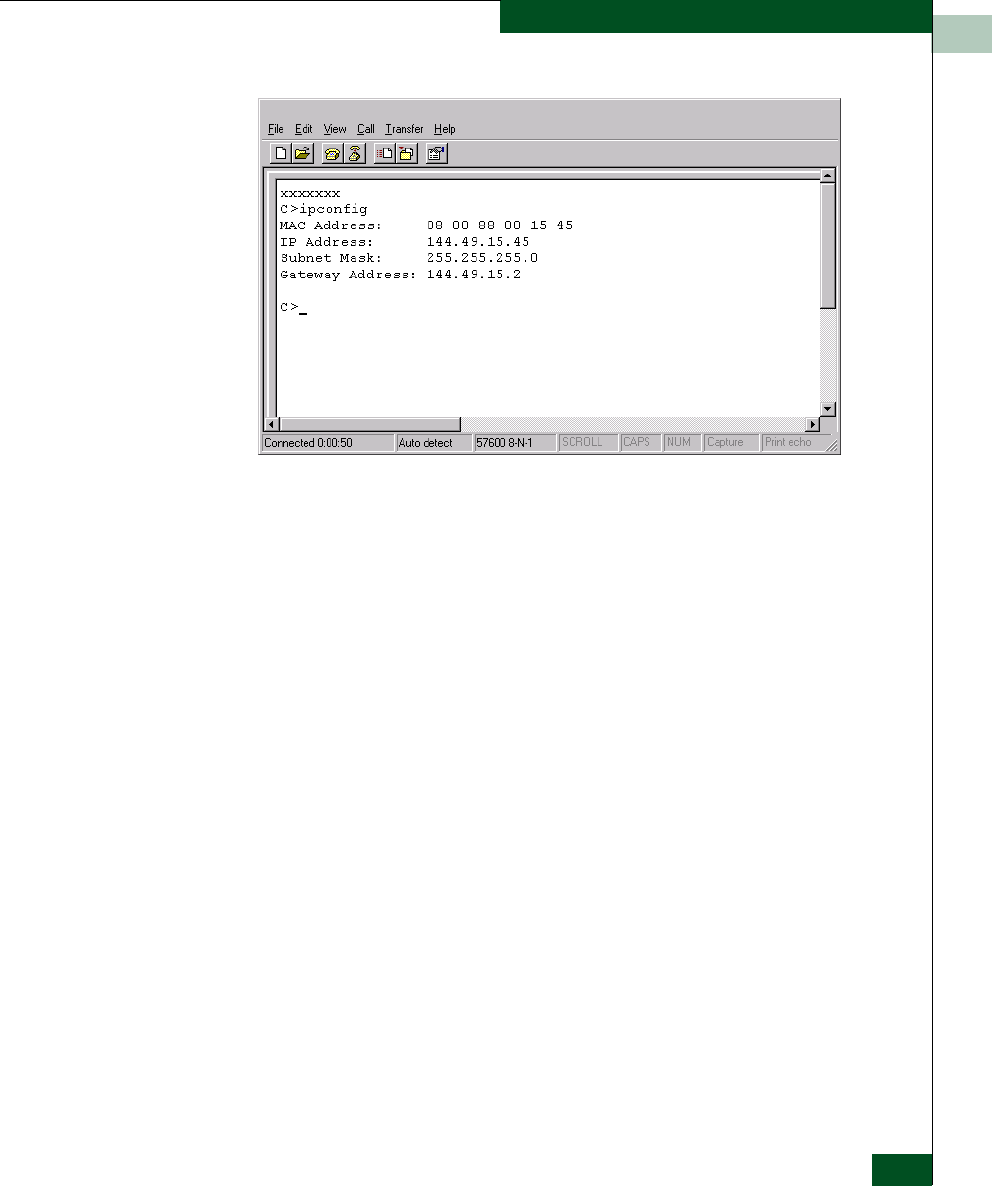

Figure 2-8 Hyperterminal Window
10. At the C> prompt, type ipconfig and press Enter. The
HyperTerminal window displays with configuration information
listed as follows:
— MAC Address.
— IP Address (default is 10.1.1.10, factory preset is 10.1.1.10).
— Subnet Mask (default is 255.0.0.0).
— Gateway Address (default is 0.0.0.0).
Only the IP Address, Subnet Mask, and Gateway Address fields are
configurable.
11. Change the IP address, subnet mask, and gateway address as
directed by the customer’s network administrator. To change
theswitch network addresses, type the following at the C>
prompt and press Enter.
ipconfig xxx.xxx.xxx.xxx yyy.yyy.yyy.yyy zzz.zzz.zzz.zzz
The IP address is always xxx.xxx.xxx.xxx, the subnet mask is
always yyy.yyy.yyy.yyy, and the gateway address is always
zzz.zzz.zzz.zzz, where the octets xxx, yyy, and zzz are decimals
from zero through 255. If a network address is to remain
unchanged, type the current address in the respective field.
