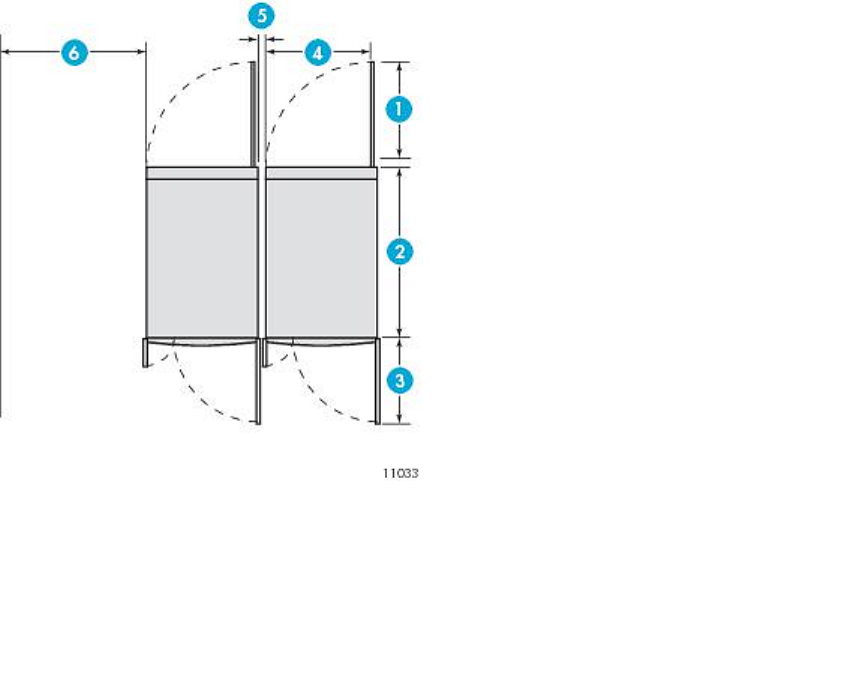

Minimum floor space for CLM libraries is shown in Figure 2.
2. Depth of cabinets—50 inches (127 cm)1. Back door clearance—28 inches (71 cm)
4. Width of cabinets—30 inches (76 cm) per CLM
library cabinet
3. Front door clearance—23 inches (58 cm)
6. Clearance left of primary cabinet—52 inches (130
cm) used during installing and servicing the CLM lib-
rary
5. Space between cabinets—1 inch (2.5 cm)
Figure 2 Floor space requirements (CLM libraries)
.
Floor clearance
The library has a floor clearance of 0.75 inch (19 mm). Place the library on a level, uncarpeted floor
free of defects.
Floor strength and inclination
The floor at the installation site must be rated at 250 lb/ft
2
(1221 kg/m
2
). This is sufficient to support
a fully loaded library.
The floor must be level to within 0.25 inch (6.4 mm) over a 6 ft by 6 ft (1.83 m by 1.83 m) area.
Ventilation
Do not place the library directly over any cooling vents. Placing the library over cooling vents will
result in an “out of temp” reporting in the library log.
