Unpacking the library
To unpack the library:
1. Note the side of the pallet where the library will be unloaded. The library may be unloaded from
only the ramp side of the pallet (see Figure 5).
2. Verify the minimum floor space requirements (see Figure 5 on page 15).
NOTE:
Figure 5 shows the minimum floor space required by the library at its unboxing site. Unboxing
the library requires a minimum of 3 feet (91 cm) on all sides. The side used for the unloading
ramp requires 14 feet (4.26 m). The minimum height required for unpacking the library is
85 inches (2.16 m).

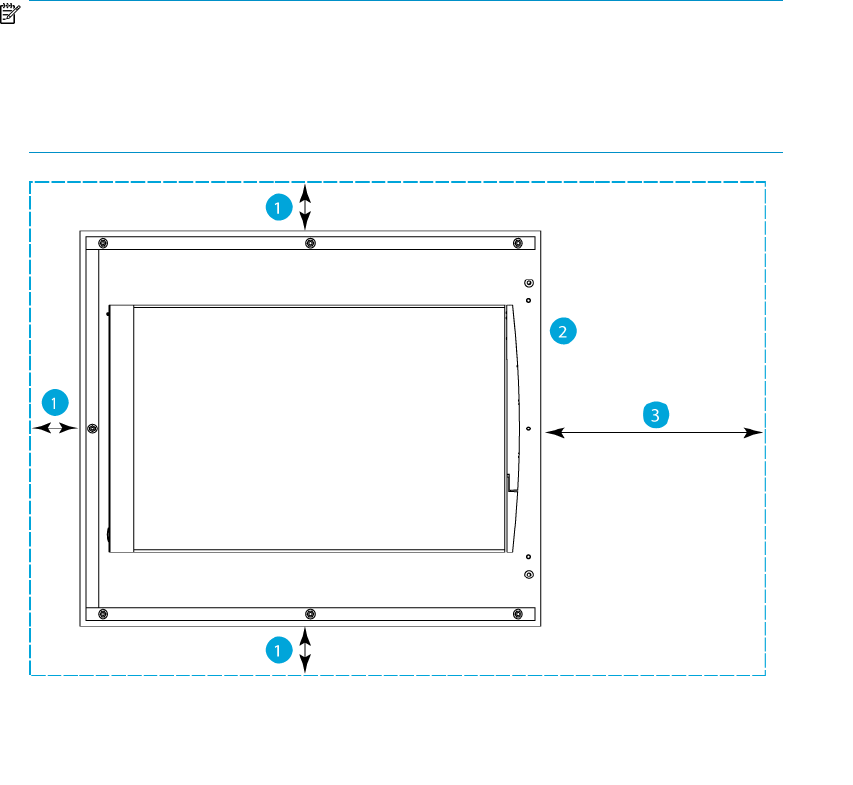

2. Ramp side1. 3 feet (91 cm)
3. 14 feet (4.26 m)
Figure 5 Minimum floor space requirements - unpacking site
.
