9. Attach the vertical axis shipping restraint to the robot shipping restraint using the four screws
removed from the vertical axis shipping restraint in Figure 17 (see Figure 18).

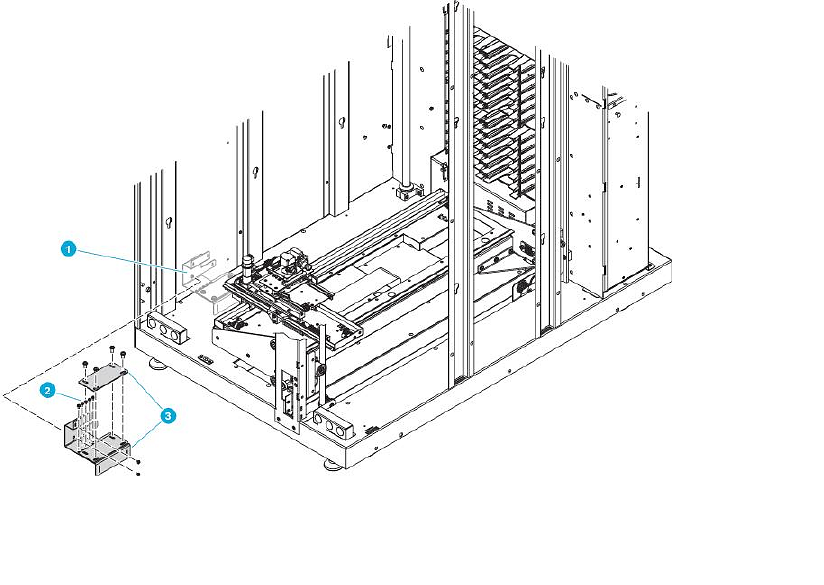

2. Spare screws1. Shipping restraints in storage position
3. Shipping restraints
Figure 18 Storing the vertical axis and robot shipping restraints
.
10. Store the five spare screws in the robot shipping restraint as shown in Figure 18.
11. Use the remaining two screws to secure the combined shipping restraints in the library, as shown
in Figure 18.
