HP StorageWorks ESL E-Series Tape Library Unpacking and Installation Guide (350800-011, May 2010)

NOTE:
A step stool may be needed to reach the e2400-160 interface controllers in the card cage located at
the top of the library cabinet.
1. Attach a SCSI terminator (provided) to the top SCSI port on each Ultrium 460 or SDLT drive (see
Figure 24).
1. Terminators

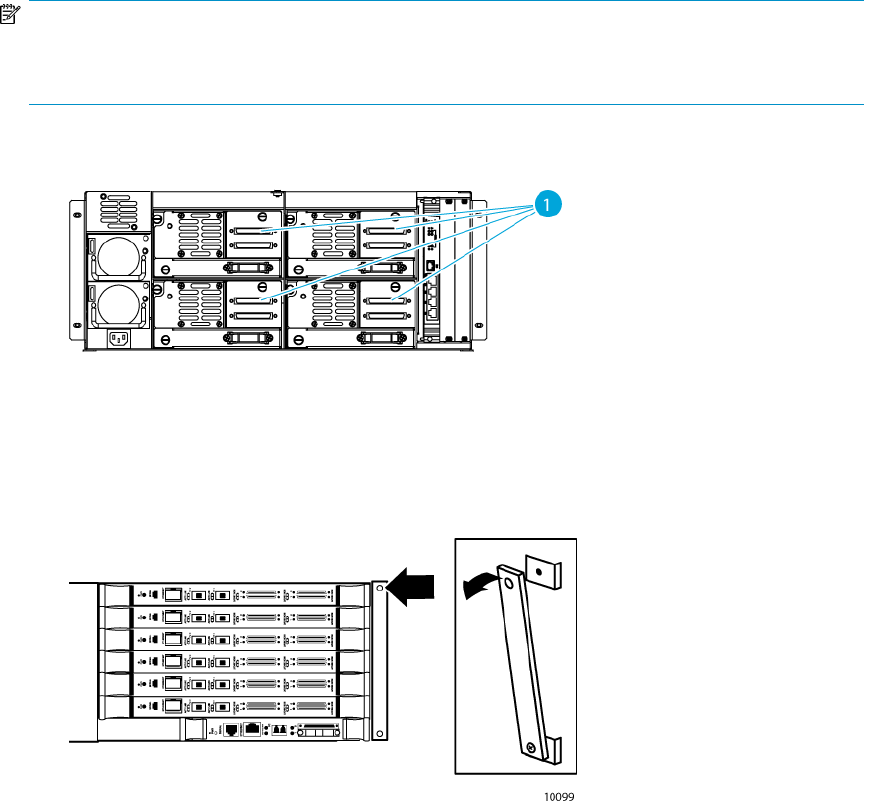

Figure 24 Attaching SCSI terminators to the Ultrium 460 or SDLT drive
.
2. Remove the top screw from the cable restraint bracket and loosen the bottom one to prepare for
cable routing (see Figure 25).
Figure 25 Preparing the cable restraint bracket
.
