NOTE:
The other white tie wraps are provided as spares.
5. Route the SCSI cables through the cluster cable clamp on the lower right corner of the cluster
frame (see Figure 29).

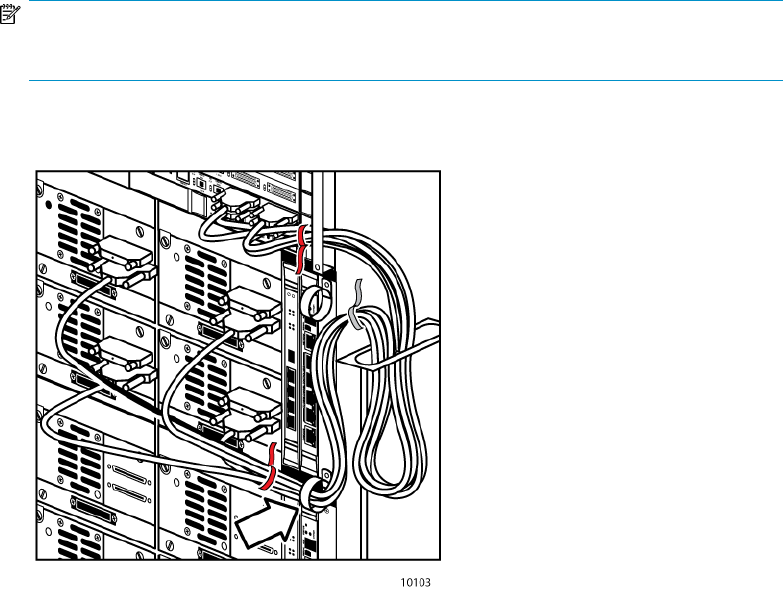

Figure 29 Routing cables through the cluster cable clamp
.
a. Using a #2 Phillips screwdriver, remove the screw from the clamp.
b. Route the SCSI cables through the clamp.
c. Secure the clamp to the cluster frame by replacing the screw.
6. Repeat these steps for each interface controller and drive cluster combination installed in the
library.
Connecting FC cables for LTO3 or earlier tape drives
To connect LTO3 or earlier tape drives to a SAN or host, connect FC cables (not provided) from the
interface controllers through an access hole in the library cabinet, and to an FC switch or Host Bus
Adapter (HBA) (see Figure 30).
1. Attach an FC cable (one per every two drives) to the FC0 and FC1 ports on the interface controller.
If you are only attaching one cable, attach it to port FC0.
2. Route the cables through access holes on the top or bottom of the library cabinet.
If routing through the top of the cabinet, use a Phillips screwdriver to remove the plate covering
the top access hole. If routing through the bottom of the library cabinet, route the cable(s) down
the left side of the library next to the power cables.
