SDLT bar code labels
SDLT cartridges have a front slide slot located on the face of the cartridge next to the write-protect
switch (see Figure 35). Use this slot for inserting the bar code label by sliding it into the slot.
CAUTION:
Do not apply labels onto the top, bottom, sides, or back of the cartridge as this may cause damage
to the tape drive, or interfere with reliable operation.

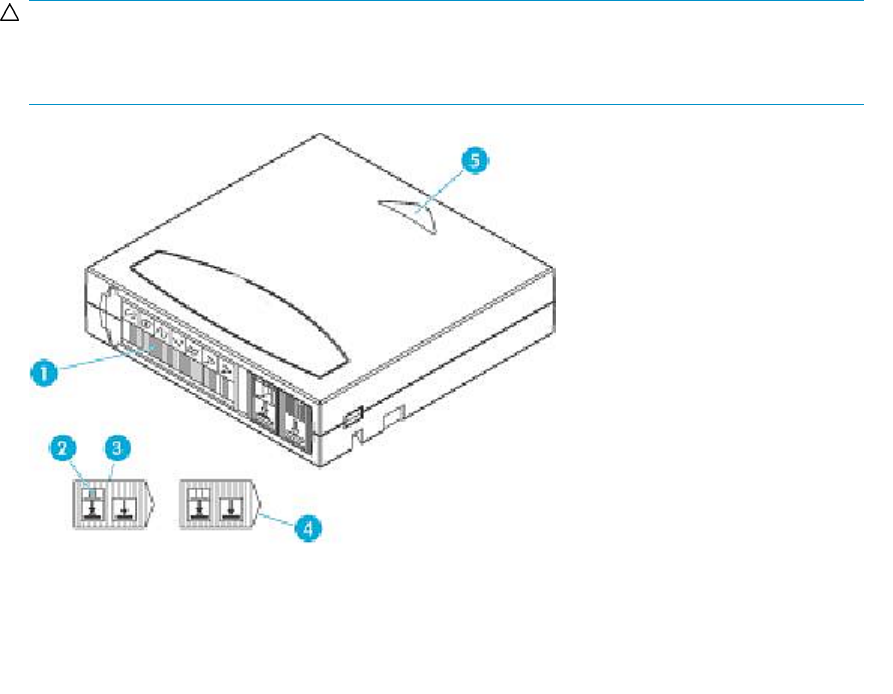

2. Orange indicator1. Barcode label
4. Write enabled—slide right3. Write protect—slide left
5. Insertion arrow
Figure 35 SDLT cartridge
.
