Figure 41 shows the back panel bins. With Ultrium drives, each column has seven slots; with SDLT
drives, each column has six slots. Begin at the top, with the panel corresponding to cluster 0, and
load top to bottom and left to right. Continue loading each sequential cluster, top to bottom and left
to right.
NOTE:
The number of slots located in the back panel varies with the number of drive clusters installed.

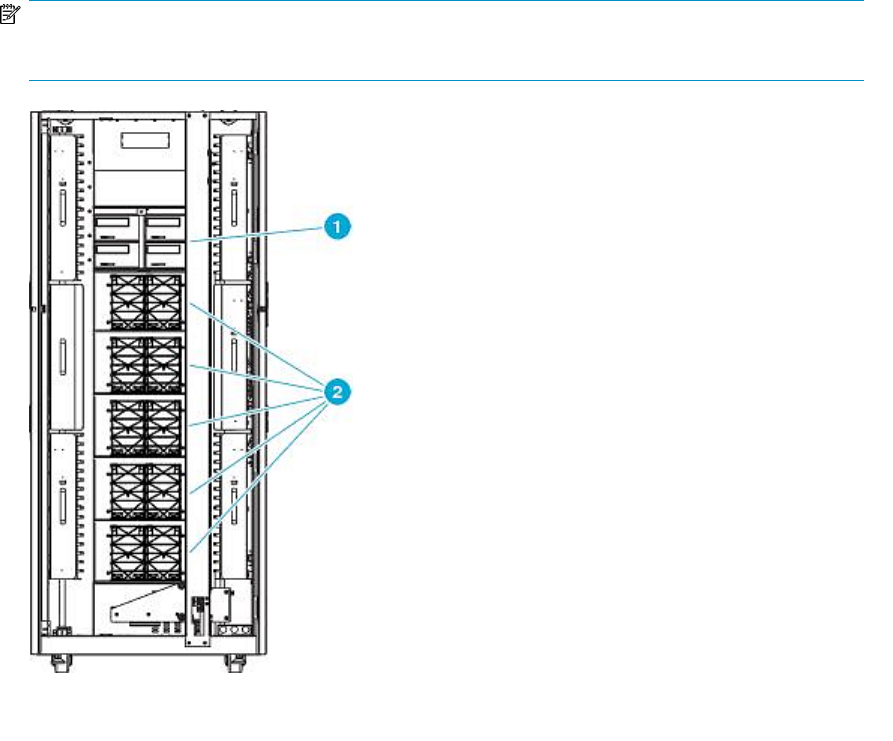

2. Back panel bins1. Cluster 0
Figure 41 Back panel bins (SDLT shown)
.
