Replacement
Instructions
These instructions apply to the MSA1000
product family. The part may also be used
in other HP products. Please refer to
documentation for your specific product
for detailed replacement instructions.
358187- 001
About this document
This document details the procedures for replacing a failed MSA Hub
2/3 in HP StorageWorks Modular Smart Array (MSA) storage
systems.
Verifying component failure
Before replacing the hub, use the following methods to verify the
component failure.

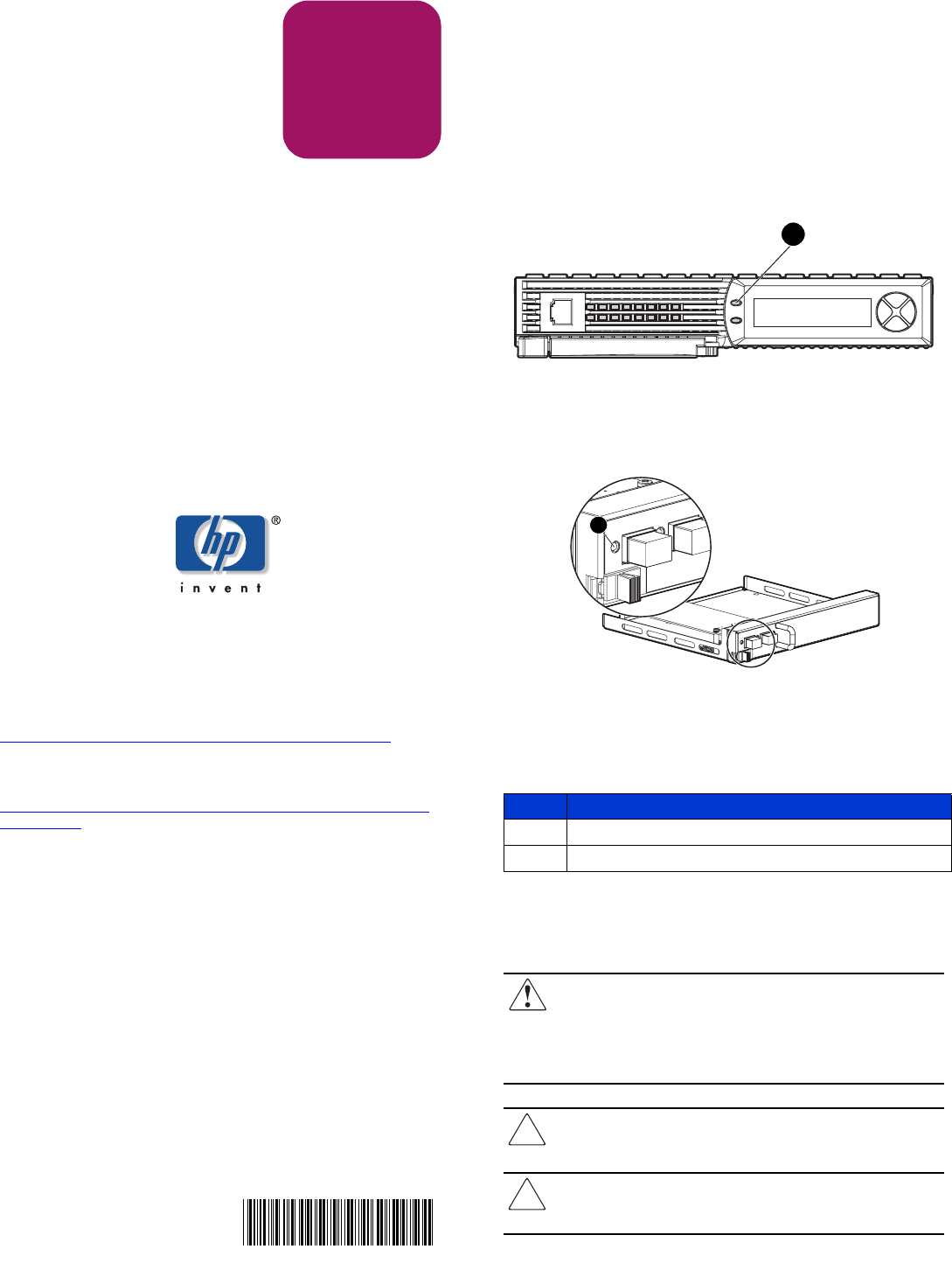

■ Check the controller fault LED (Figure 1, 1). If the LED is on, it
indicates a failure.
Figure 1: Controller fault indicator
■
If the service indicator LED flashes amber, it indicates a failure
(Figure 2, 1).
Figure 2: Service indicator
■
Check the controller LCD for one of the error messages listed in
Table 1.
Before you begin
Read the following cautions and information before beginning
removal and replacement procedures.
WARNING: To reduce the risk of injury from laser radiation or
damage to the equipment, observe the following precautions:
■ Do not open any panels, operate controls, make adjustments,
or perform procedures to a laser device other than those
specified herein.
■ Do not stare into the laser beam when panels are open.
Caution: Be sure the replacement part is available before
removing the failed component. Removing a component impacts
cooling within the enclosure.
Caution: Parts can be damged by electrostatic discharge. Use
proper anti-static protection. Refer to the documentation that
shipped with your system for additional information.
Table 1: LCD Error Messages
No. Message
515
FIBRE DEVICE HARDWARE FAILURE
516
FIBRE SUBSYSTEM LINK FAILURE
1
15093
1
15095
