◦ “Rebooting the library (Operations> Reboot library)” (page 118)
◦ “Enabling password locks (Operations > Enable Library Password Locks)” (page 118)
• “Support” (page 118)
“Powering a drive on or off (Support > Power On/Off Drives)” (page 118)◦
◦ “Running the demonstration (Support > Run Demo)” (page 119)
◦ “Running the slot to slot test (Support > Run Slot To Slot Test)” (page 119)
◦ “Running the wellness test (Support > Run Wellness Test)” (page 120)
◦ “Upgrading firmware (Support > Library FW Upgrade, Support > Drive FW Upgrade)”
(page 120)
◦ “Forcing the drive to eject a tape (Support > Force Drive To Eject Tape)” (page 122)
◦ “Viewing logs (Support > Library Error Log)” (page 121)
◦ “Downloading a support ticket (Support > Download Support Ticket)” (page 122)
LED indicators
The operator panel includes four LEDs that provide a summary of the device status as detailed in
Figure 96 (page 101).

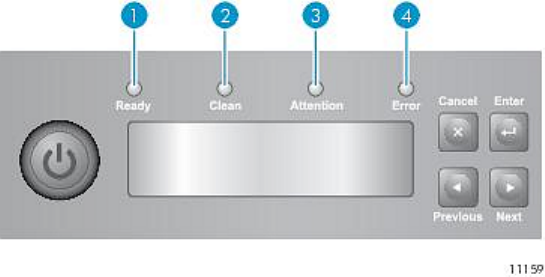

Figure 96 LEDs
Ready. Illuminated when power is on. Blinking during tape drive or robotics activity.Green1.
Clean. Illuminated when a cleaning cartridge should be used.Amber2.
Attention. Illuminated if the device has detected a condition that requires attention.Amber3.
Error. Illuminated if an unrecoverable error occurs. A corresponding error message displays
on the LCD screen.
Amber4.
Library home screen
The first line of the Home screen displays the device's product name. The second line displays a
brief status message.
Drive status definitions are listed in Table 21 (page 102).
MSL2024 Operator control panel (OCP) 101
