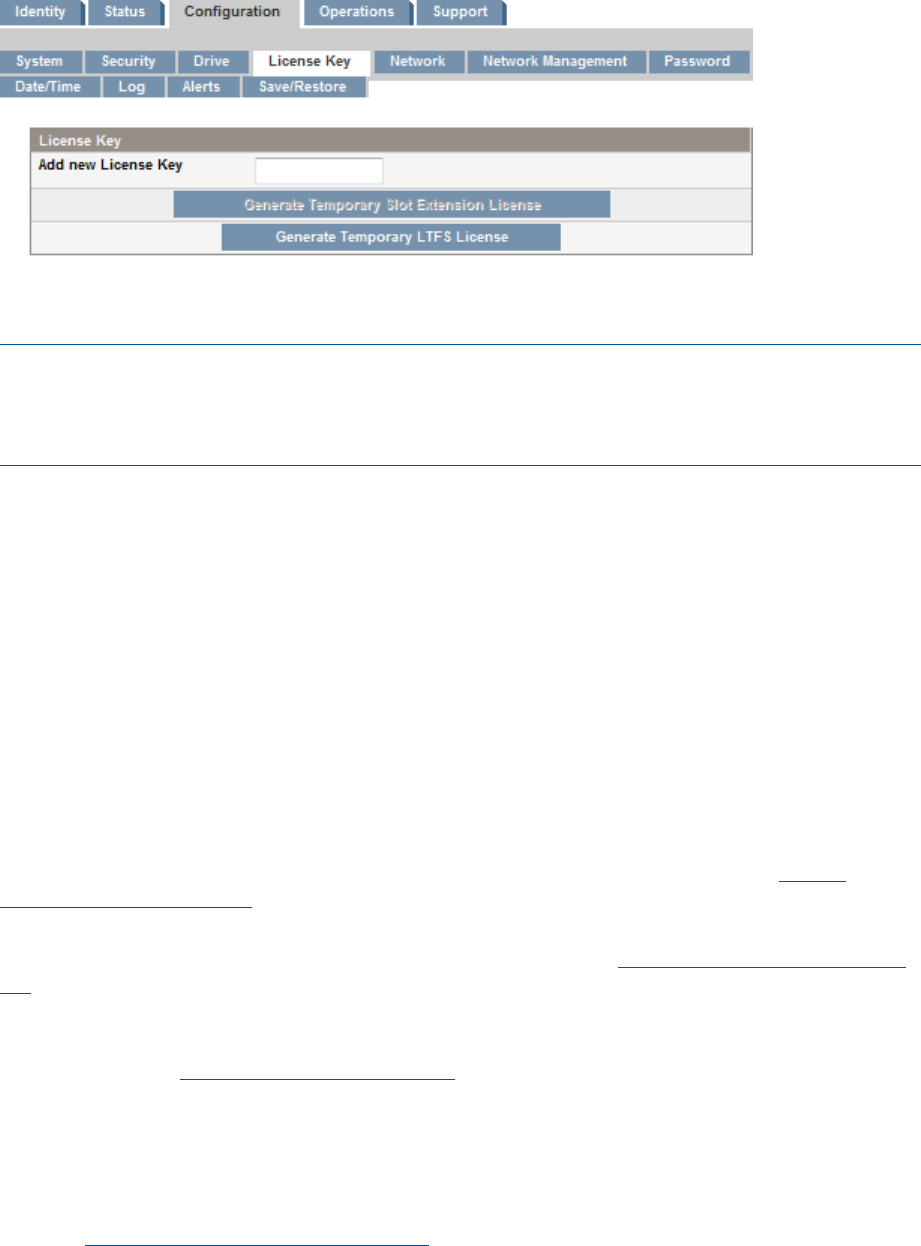

Figure 2 RMI Configure: License Key screen
After you order the upgrade license, you can access the additional slots immediately by generating
a temporary license key. The temporary key can only be enabled once and is valid for 30 days.
NOTE: The temporary key is intended to provide instant access to the upgrade capabilities until
you receive the permanent key. The temporary key expires after 30 days. If you do not have a
permanent license key before the temporary key expires, you will lose access to the additional
storage slots when the temporary license key expires.
When you receive the permanent license key from HP, enter the key and press Submit. The
permanent license takes effect when the library is rebooted. You may need to reboot the library
to enable the additional slots.
Command View TL TapeAssure
HP Command View TL software provides a browser-based GUI for remote management and
monitoring of most HP libraries through a LAN. With Command View TL, you can view and analyze
the performance and health of the LTO-4, LTO-5, and LTO-6 tape drives and media in multiple HP
MSL2024, MSL4048, MSL8048, and MSL8096 Tape Libraries and 1/8 G2 Tape Autoloaders
at the same time. In addition, the information shown in TapeAssure is more extensive than that
shown in the RMI.
Command View TL software is installed on a management station. The management station can
also be used to manage HP EML and ESL Tape Libraries. For best performance, the management
station should be in the same physical location and on the same IP subnet as the library. Command
View TL software is available for download without charge from the HP website at http://
www.hp.com/support/cvtl.
For information on installing and using Command View TL, see the HP Interface Manager and
Command View TL User Guide, available from the HP website at http://www.hp.com/support/
cvtl.
Command View TL support is included in all library firmware that supports LTO-5 and later
generation tape drives. To find and download the most up-to-date firmware revision, visit the HP
support website at http://www.hp.com/support.
LTFS Automation License Support
The HP StoreOpen Automation application extends the Linear Tape File System (LTFS) functionality
by presenting an autoloader or library and its tape cartridges as a collection of folders for easy
data access and management. For more information about LTFS capabilities, visit the StoreOpen
website: http://www.hp.com/go/StoreOpen
Enabling the LTFS feature requires a license for the library. Use the RMI Configure: License Key
screen to manage the license key.
To generate a 60-day temporary license without cost:
1. Navigate to the RMI Configuration: License Key screen.
Library options 13
