Setting and changing the administrator password (Configuration> Set Admin Password)
This option allows you to change the administrator password. Access to this feature requires the
administrator password or the Service password. Passwords consist of exactly eight characters
each between the value of 0 and 9.
Restricted areas (indicated by a padlock icon) prompt for this administrator password before
granting access. Once entered, the administrator password does not have to be entered a second
time unless there is no user activity for five minutes. To access this screen, enter the administrator
password first, if you have not already done so.
NOTE: If you forget the administrator password, you cannot enter a new password. You must
call your customer service representative.
Restore defaults (Configuration > Restore Defaults)
This option returns the library to its original shipping configuration, leaving the settings necessary
for the RMI. Access to this feature requires the administrator password.
The following settings are reset:
• SCSI addresses:
MSL4048: For full-height tape drives the default SCSI address is 4. For half-height drives,
the default SCSI address for the bottom drive in each full-height drive bay is 4 and the
◦
default SCSI address for the top drive is 5 as shown in “MSL4048 parallel SCSI tape
drive default SCSI addresses” (page 135).

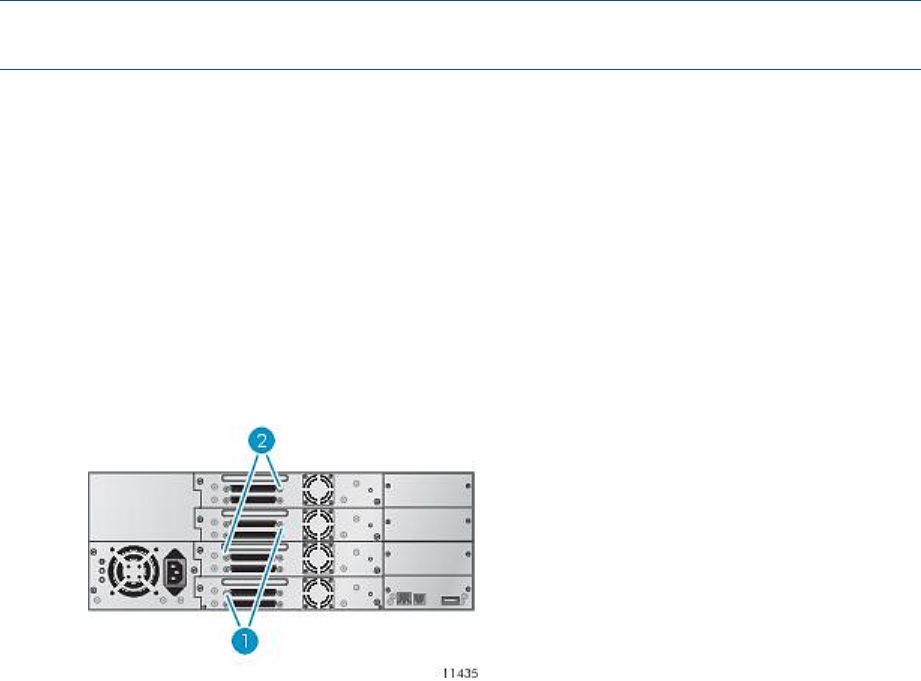

Figure 106 MSL4048 parallel SCSI tape drive default SCSI addresses
1. Tape drives with SCSI address 4
2. Tape drives with SCSI address 5
◦ MSL8048 and MSL8096: The default SCSI address for all tape drives is 4.
The library will no longer recall drives that have been removed.
• Master drive: reset to Drive 1 or the lowest numbered existing drive
• Drive power: all drives powered on
• Active slots: maximum possible
• Library mode: Automatic
• Loop: No
• Event log levels and filter: continuous trace and all levels and filters active (for HP Service use
only)
• Barcode reader label length: 8
• Barcode reader alignment: Left
