tape drives or up to four half-height tape drives. The MSL8096 supports up to four half-height or
full-height tape drives. For the tape drives and magazines assigned to each logical library see:
• “MSL4048 and MSL8096 Tape Libraries partitioned into two logical libraries” (page 20)
• “MSL4048 and MSL8096 Tape Libraries partitioned into three logical libraries” (page 21)
• “MSL4048 and MSL8096 Tape Libraries partitioned into four logical libraries” (page 21)
Each logical library includes the tape drives in specific drive locations. You may need to move a
tape drive if there is not a tape drive in the top half of the library. If the library only has two tape
drives installed in the bottom two drive bays, move one tape drive to the top half of the library.
Power off the tape drive from the RMI Configuration: Drive screen before moving the tape drive.
For instructions on removing and replacing a tape drive, see “Removing and replacing a tape
drive” (page 201).
NOTE: The MSL4048 tape library will not operate with a full-height tape drive installed in the
middle two half-height drive bays. Only install a full-height tape drive in either the upper or lower
two half-height drive bays.

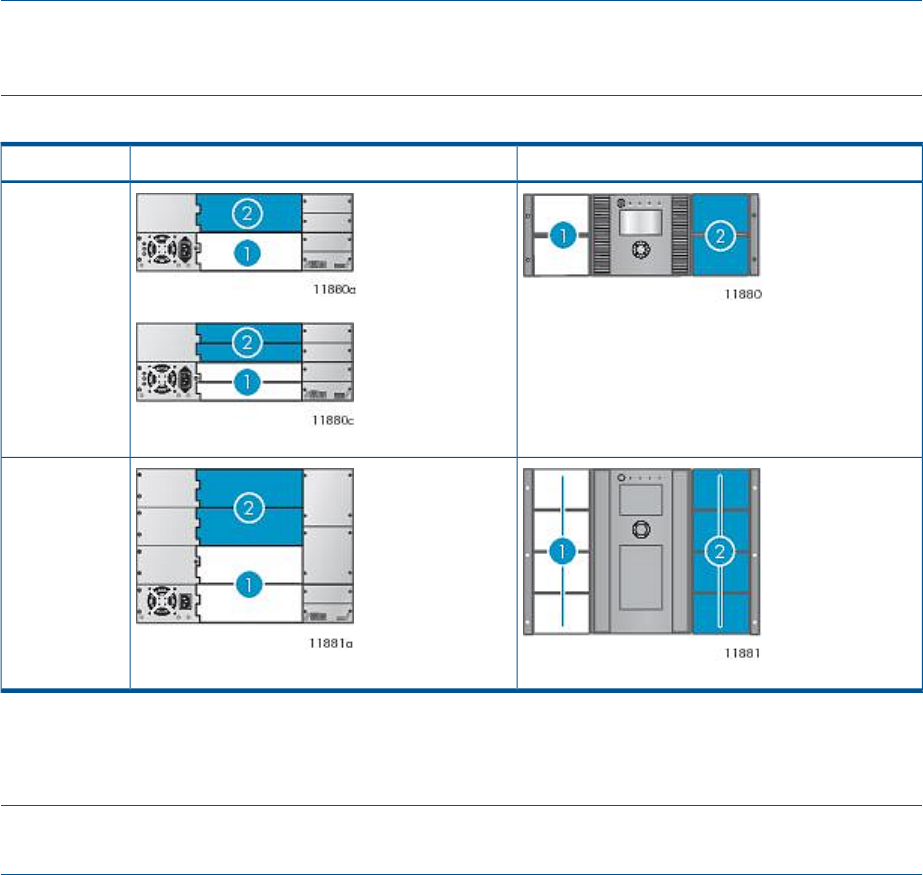

Table 11 MSL4048 and MSL8096 Tape Libraries partitioned into two logical libraries
MagazinesTape drives
MSL4048
MSL8096
1. Logical library 1 tape drives and magazines.
2. Logical library 2 tape drives and magazines.
NOTE: In the MSL8096, half-height tape drives are installed in the bottom half of each drive
bay.
