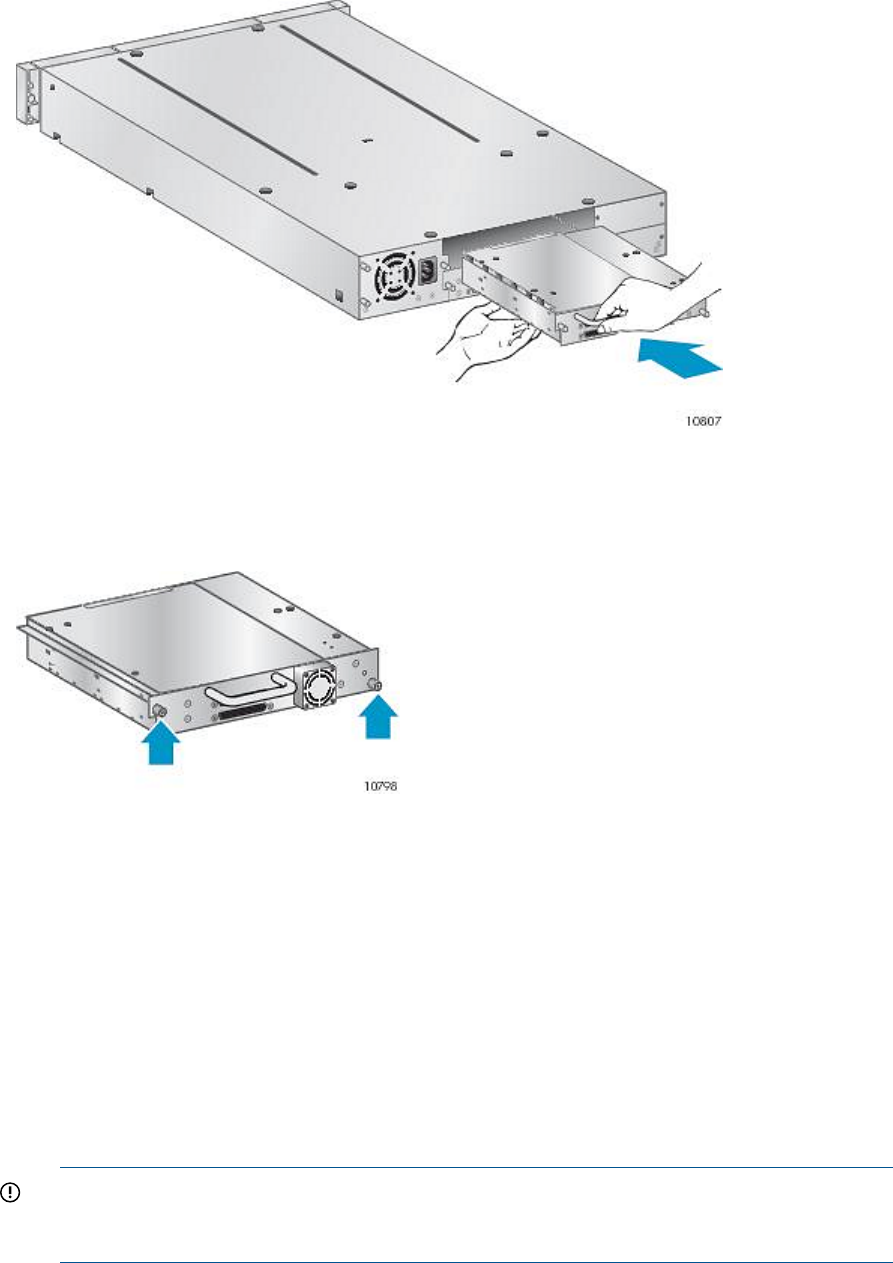

Figure 123 Installing a new tape drive
3. Tighten the blue captive screws (see Figure 124 (page 200)) by hand to secure the tape drive
to the library chassis.
Figure 124 Tighten the blue thumbscrews
4. Plan the configuration for the new tape drive:
• Parallel SCSI: See “Planning the SCSI configuration” (page 39). If the tape drive's SCSI
address must be changed, do so before connecting the drive to the host. See “Changing
the SCSI address (parallel SCSI only)” (page 50).
• SAS: See “Planning the SAS configuration” (page 40).
• Fibre Channel: See “Planning the Fibre Channel configuration” (page 42).
5. Connect the tape drive to the host:
• Parallel SCSI: Connect one of the connectors on the parallel SCSI cable to the tape drive
and connect the other end of the cable to the HBA or other device on the same parallel
SCSI bus. If the tape drive is the last device on the parallel SCSI bus, attach the terminator
to the other parallel SCSI connector on the tape drive.
IMPORTANT: For the library and tape drives to operate correctly, each SCSI tape drive
must have a SCSI terminator unless the tape drive is part of a properly terminated chain.
This includes tape drives without an attached SCSI cable.
• SAS: The cable recommended for use with the SAS library can connect up to four SAS
tape drives to an HBA. Any tape drive can be connected with any of the four tape drive
