In this procedure you will:
• Remove the power supply bay cover.
• Install the new power supply.
• Verify the installation.
CAUTION: Parts can be damaged by electrostatic discharge. Keep parts in electrostatic containers
until needed. Ensure that you are properly grounded when touching static-sensitive components.
To install a redundant power supply:
1. From the back of the library, use a Phillips screwdriver to remove the power supply bay cover.
The cover is designated with a label.

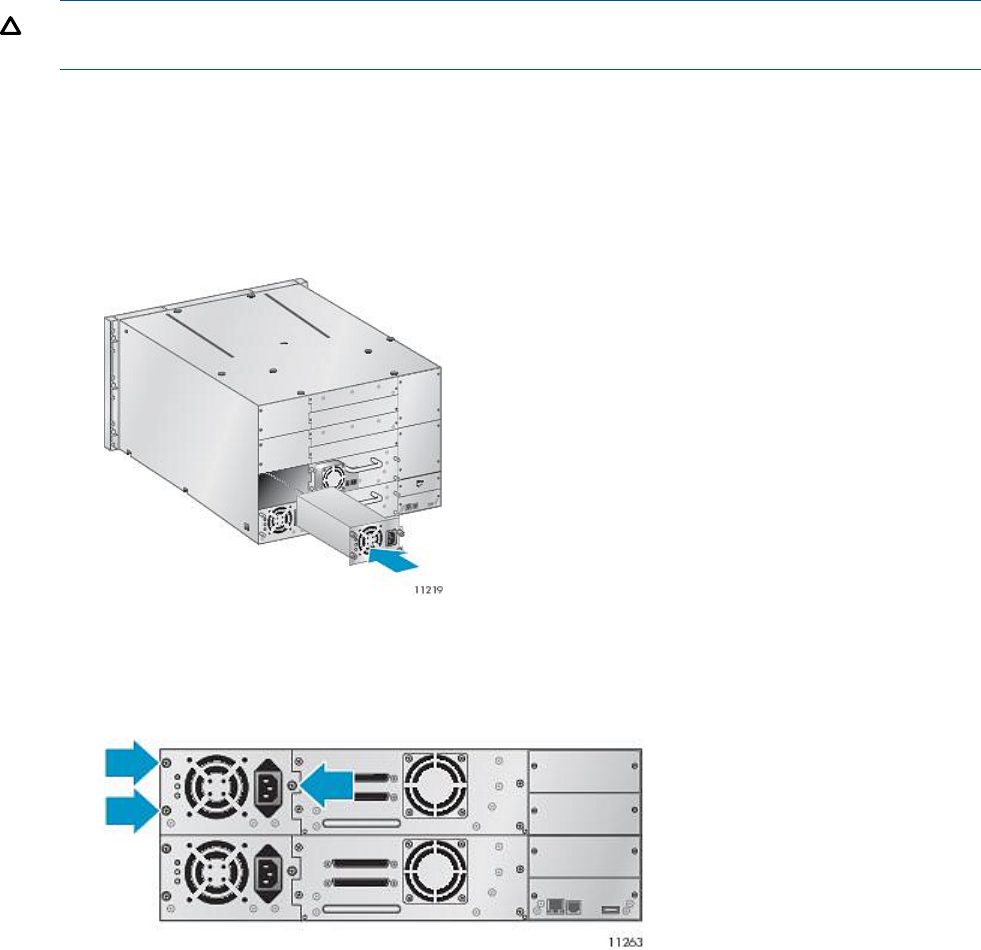

2. Position the new power supply on the alignment rails and push it into the library until it is flush
with the back panel, as shown in Figure 133 (page 206).
Figure 133 Installing the new power supply
3. Tighten the blue thumbscrews to secure the power supply to the library as shown in
Figure 134 (page 206).
Figure 134 Securing the power supply to the library
4. Attach an AC power cord to the new power connector and plug the other end into a power
outlet.
