5. Verify that the new power supply is operating properly. The blue and green LEDs on the power
supply module should be lit and the yellow LED should be off, as shown in Figure 135 (page
207). Both power supplies should be listed on the OCP screen.

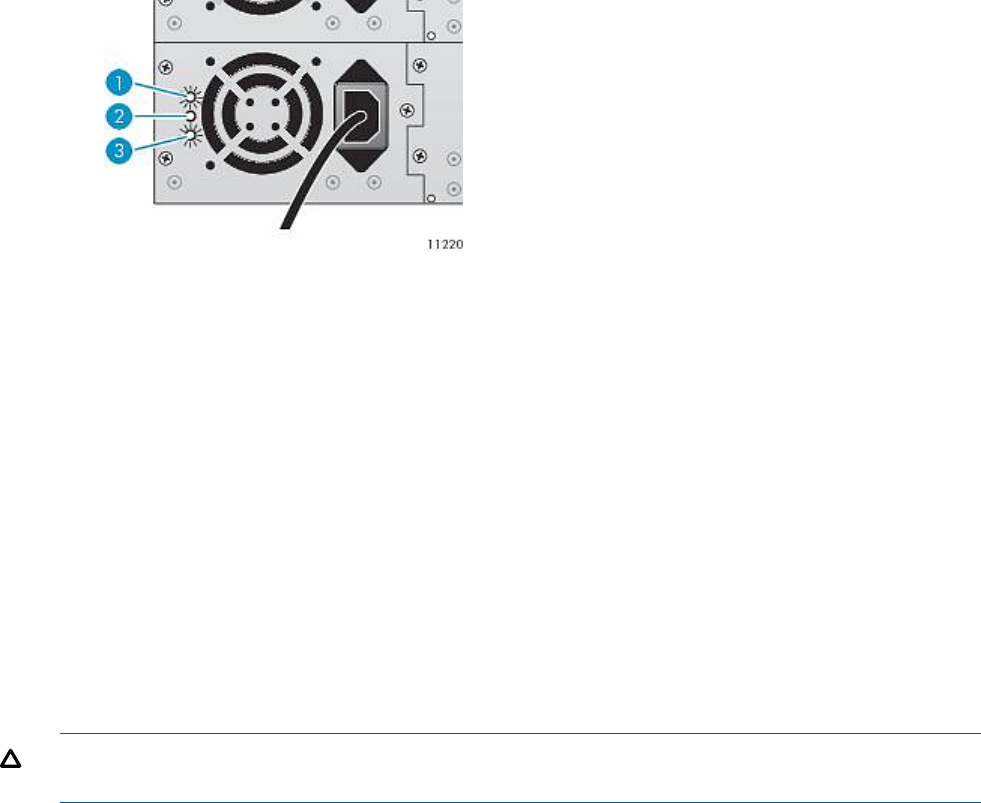

Figure 135 Power supply LEDs
AC power is connected.1. Blue
Fan failure. The fan is running too slow or is defective.2. Yellow
The power supply is producing good power for the library.3. Green
Replacing the power supply (MSL4048, MSL8048, and MSL8096)
This process applies to the MSL4048, MSL8048, and MSL8096 only. A redundant power supply
can be replaced without powering off the library.
In this process you will:
• Power off the library, if necessary, and unplug the power cord. (Only libraries with a single
power supply.)
• Remove the old power supply.
• Install the new power supply.
• Verify the replacement.
CAUTION: Parts can be damaged by electrostatic discharge. Keep parts in electrostatic containers
until needed. Ensure that you are properly grounded when touching static-sensitive components.
To replace a power supply:
1. If the library only has one power supply, power off the library from the front panel, if possible,
and remove the AC power cord. Otherwise, just remove the AC power cord from the power
supply to be replaced.
2. Loosen the three captive thumbscrews on the power supply. Grasp a thumbscrew stem on
each side of the power supply and while supporting the bottom, pull the power supply out of
the library, as shown in Figure 136 (page 208)).
Replacing the power supply (MSL4048, MSL8048, and MSL8096) 207
