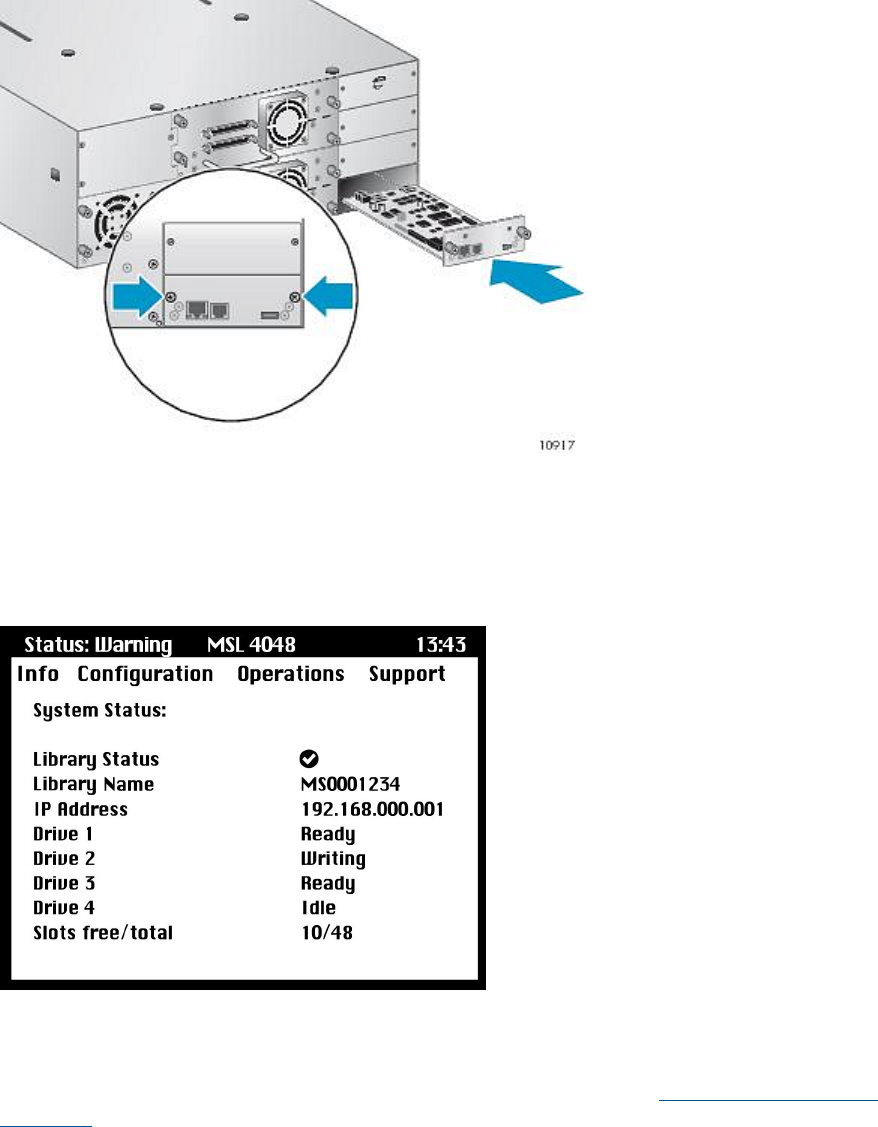

Figure 140 Installing the new library controller
5. Replace the Ethernet cable, if applicable. Power on the tape library.
6. Confirm that the library recognized the new library controller by checking the System Status
on the front panel, as shown in Figure 141 (page 210).
Figure 141 MSL4048, MSL8048, and MSL8096 system status
7. Restore the previous settings by manually entering them in the OCP or RMI.
8. Run HP Library & Tape Tools (L&TT) diagnostic software to verify that the library and drives
have the latest firmware. L&TT can be downloaded without charge from www.hp.com/support/
TapeTools. If necessary, upgrade the library firmware through L&TT, the RMI, or a USB flash
drive.
Removing and replacing the base chassis
This process applies to the MSL2024 and MSL4048 only. In this process you will:
• Record configuration settings.
• Remove the tape cartridge from the tape drive.
• Remove the cables, drives, and magazines from the library.
• Remove the power supply and library controller. (MSL4048 only).
210 Upgrading and servicing the tape library
