2. Pull straight back on the tape drive handle to remove the tape drive from the library (see
Figure 143 (page 212)).
Figure 143 Removing a tape drive
3. Repeat Steps 1 and 2 for all other tape drives.
Removing the power supply and library controller (MSL4048 only)
On the MSL4048, the power supply and library controller are moved to the new chassis.
To remove the power supply:
1. Loosen the three captive thumbscrews on the power supply.
2. Grasp a thumbscrew stem on each side of the power supply. Support the bottom while pulling

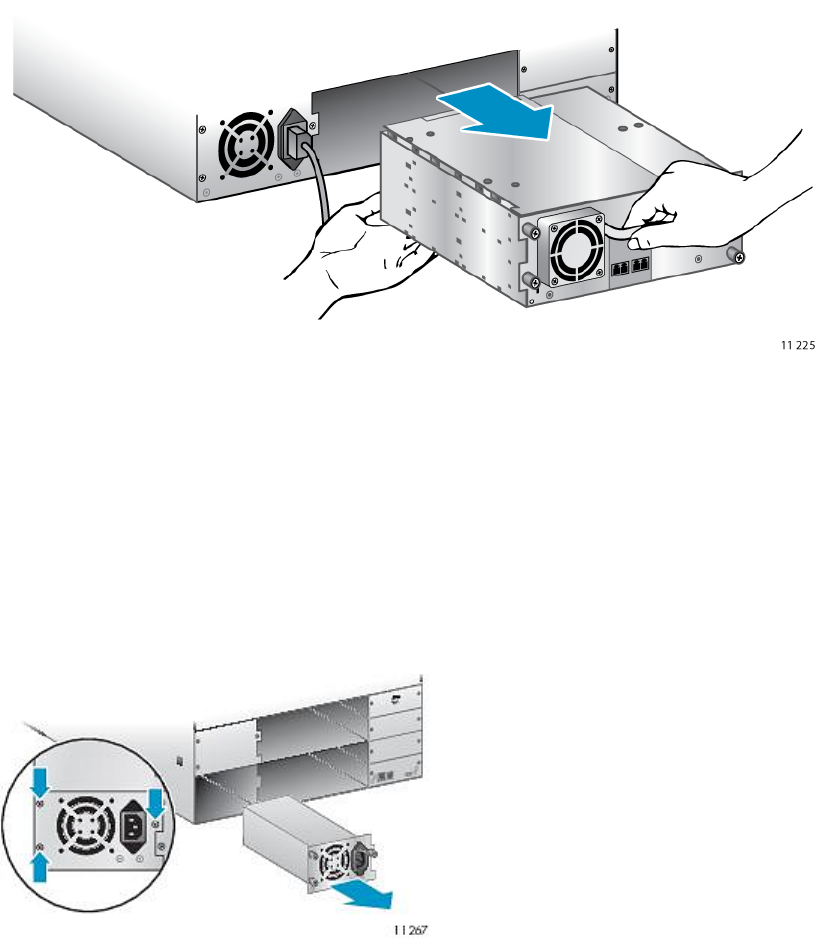

the power supply out of the library, as shown in Figure 144 (page 212).
Figure 144 Removing the power supply
To remove the library controller:
212 Upgrading and servicing the tape library
