With assistance, slide the library onto the metal rails that are already in position in the
rack.
a.
b. From the front of the device, secure the front bezel to the rack using a #2 Phillips screw
driver placed through the small holes in the mounting bracket to tighten the captive screws
on each side of the device.

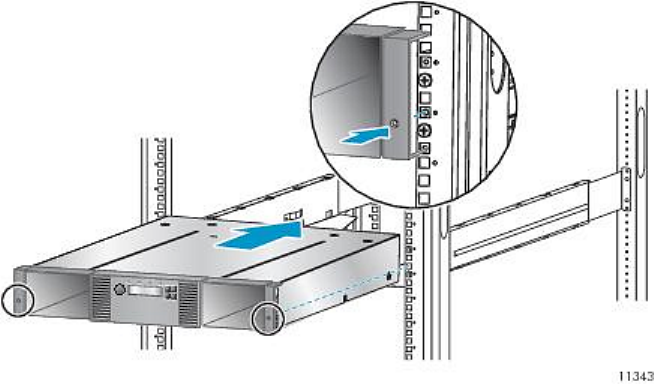

Figure 149 Securing a tape library to the rack
To replace the tabletop conversion cover:
a. Set the new base chassis on a sturdy surface in front of the cover.
b. Slide the chassis into the cover until the front panel of the chassis is aligned with the cover.
c. Tighten the captive screws on the chassis front panel until the cover is secure.
3. Replace the tape drives.
4. Replace the magazines.
5. Replace the cords and cables.
6. For the MSL4048, replace the power supply and library controller.
7. Reconnect the cables and power cord.
8. Power on the library.
9. Reconfigure the library.
