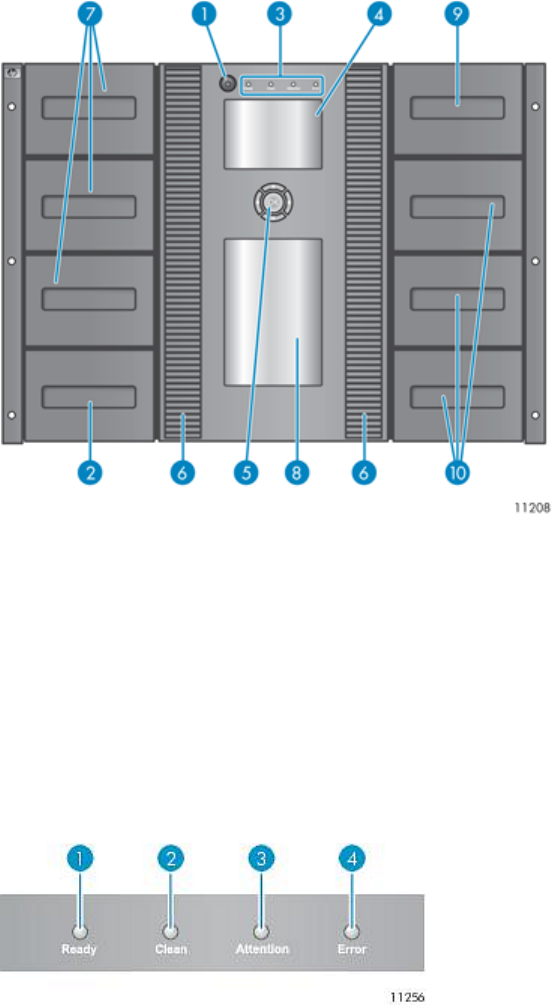

Figure 20 MSL8048 and MSL8096 front panel overview
2. Magazine, mailslot location1. Power button
4. Front panel LCD screen3. Front panel LEDs
6. Air vents5. Control buttons
8. Observation window7. Magazine
10. Magazine (MSL8096 only)9. 12-slot mailslot (MSL8096 only)
The operator control panel includes four LEDs that indicate system status information as shown in
“Operator control panel LEDs” (page 33).
Figure 21 Operator control panel LEDs
Ready. Illuminated when power is on. Blinking when there is tape drive or robotics activity.Green1.
Clean. Illuminated when the tape drive has determined that a cleaning cartridge should be used.
Cleaning is only necessary when the device directs you to do so. Additional cleaning is not
necessary.
Amber2.
Attention. Illuminated if the device has detected a condition that requires attention by the operator.Amber3.
Error. Illuminated if an unrecoverable error occurs. A corresponding error message displays on
the LCD screen (see Troubleshooting (page 142) for more information).
Amber4.
Front panel overview 33
