Back panel overview
The back panel provides access to the drive interface connectors, the tape drives, the power
connector, the Ethernet, serial and USB ports, and the magazine release holes.
• MSL2024 back panel overview (page 34)
• MSL4048 back panel overview (page 34)
• MSL8084 or MSL8096 back panel overview (page 35)

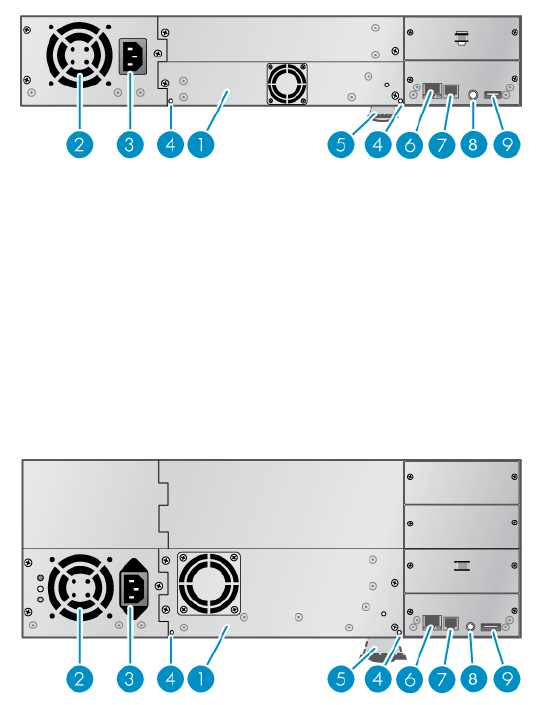

Figure 22 MSL2024 back panel overview
2. Fan1. Tape drive assembly
4. Magazine release hole3. Power connector
6. Ethernet port5. Pull-out tab containing the serial number and other
product information
8. Controller health status indicator7. Serial port (Factory use only)
9. USB port
Figure 23 MSL4048 back panel overview
2. Fan1. Tape drive assembly
4. Magazine release hole3. Power connector
6. Ethernet port5. Pull-out tab containing the serial number and other
product information
8. Controller health status indicator7. Serial port (Factory use only)
9. USB port
34 Features and overview
