• MSL2024: For full-height tape drives the default SCSI address is 4. For half-height drives, the
default SCSI address for the bottom drive is 4 and the default SCSI address for the top drive
is 5 as shown in “MSL2024 parallel SCSI tape drive default SCSI addresses” (page 40).

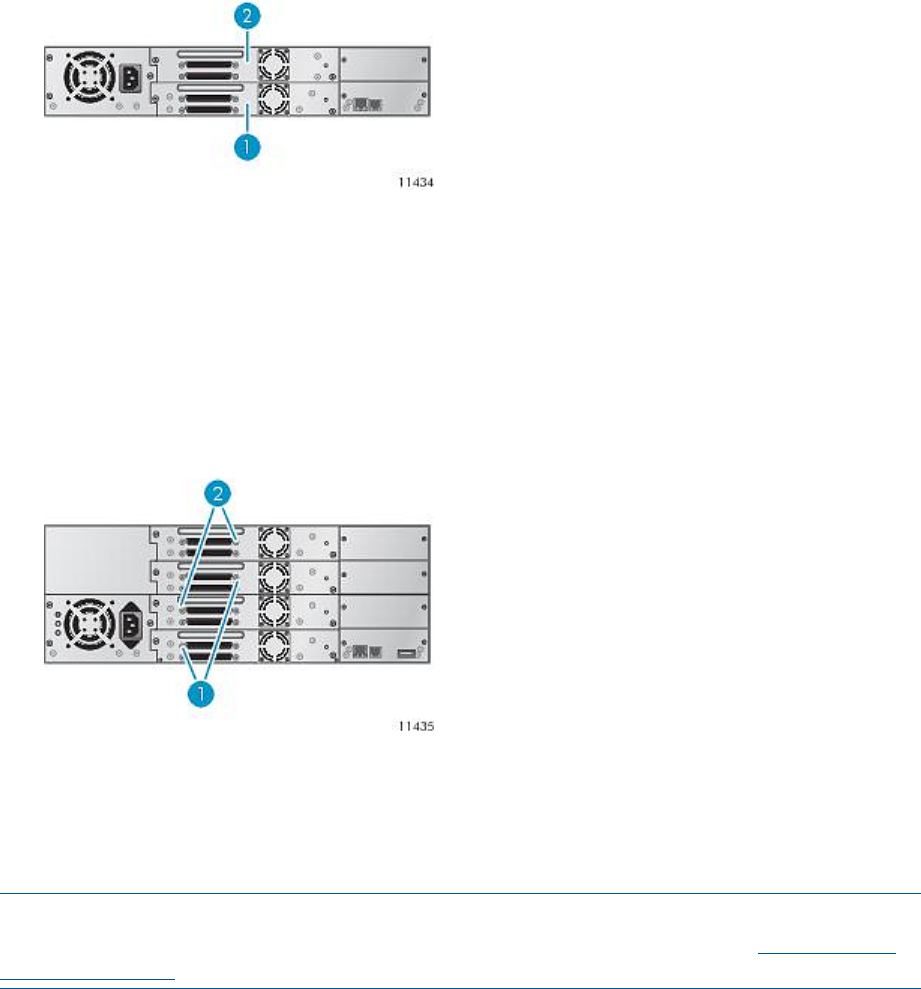

Figure 33 MSL2024 parallel SCSI tape drive default SCSI addresses
1. Tape drive with SCSI address 4
2. Tape drive with SCSI address 5
• MSL4048: For full-height tape drives the default SCSI address is 4. For half-height drives, the
default SCSI address for the bottom drive in each full-height drive bay is 4 and the default
SCSI address for the top drive is 5 as shown in “MSL4048 parallel SCSI tape drive default
SCSI addresses” (page 40).
Figure 34 MSL4048 parallel SCSI tape drive default SCSI addresses
1. Tape drives with SCSI address 4
2. Tape drives with SCSI address 5
• MSL8048 and MSL8096: The default SCSI address for all tape drives is 4.
NOTE: Use the HP Library & Tape Tools to check your server's parallel SCSI configuration. The
HP Library & Tape Tools utility is available without cost from the L&TT website at www.hp.com/
support/TapeTools.
Planning the SAS configuration
The key steps in planning the SAS configuration are obtaining a suitable HBA and cable.
The library uses two SCSI logical unit numbers (LUNs) and requires an HBA with multiple LUN
support. Most HP SAS RAID controllers support tape libraries; many non-HP SAS RAID controllers
to not support tape libraries. To verify the specifications of your HBA or find a list of compatible
40 Installing the library
