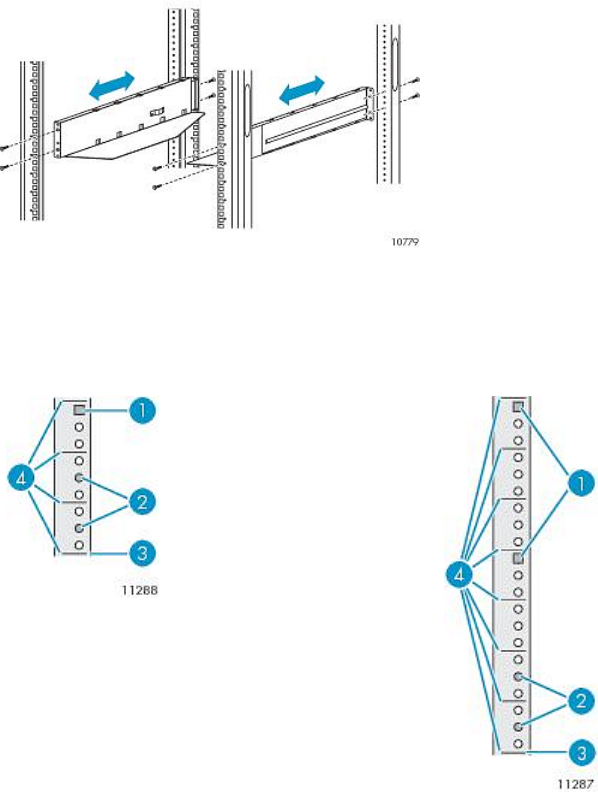

Figure 39 Installing the rails into the rack
3. For the MSL4048, MSL8048, and MSL8096 insert the clip nuts on the front of the rack in the
locations shown. These will be used to secure the library to the rack.
MSL8048 and MSL8096MSL4048
2. Rail screw location1. Clip nut location
4. U marker3. Bottom of the library
To install the device on the rails and into the rack:
1. Locate the captive screws on the front bezel (see “Securing the tape library to the rack”
(page 48)). The MSL2024 has two captive screws. The MSL4048 has four captive screws
and the MSL8048 and MSL8096 have six captive screws.
2. Slide the device onto the rails.
