3. From the front of the device, secure the front bezel to the rack using a #2 Phillips screw driver
placed through the small holes in the mounting bracket to tighten the captive screws on each
side of the device.

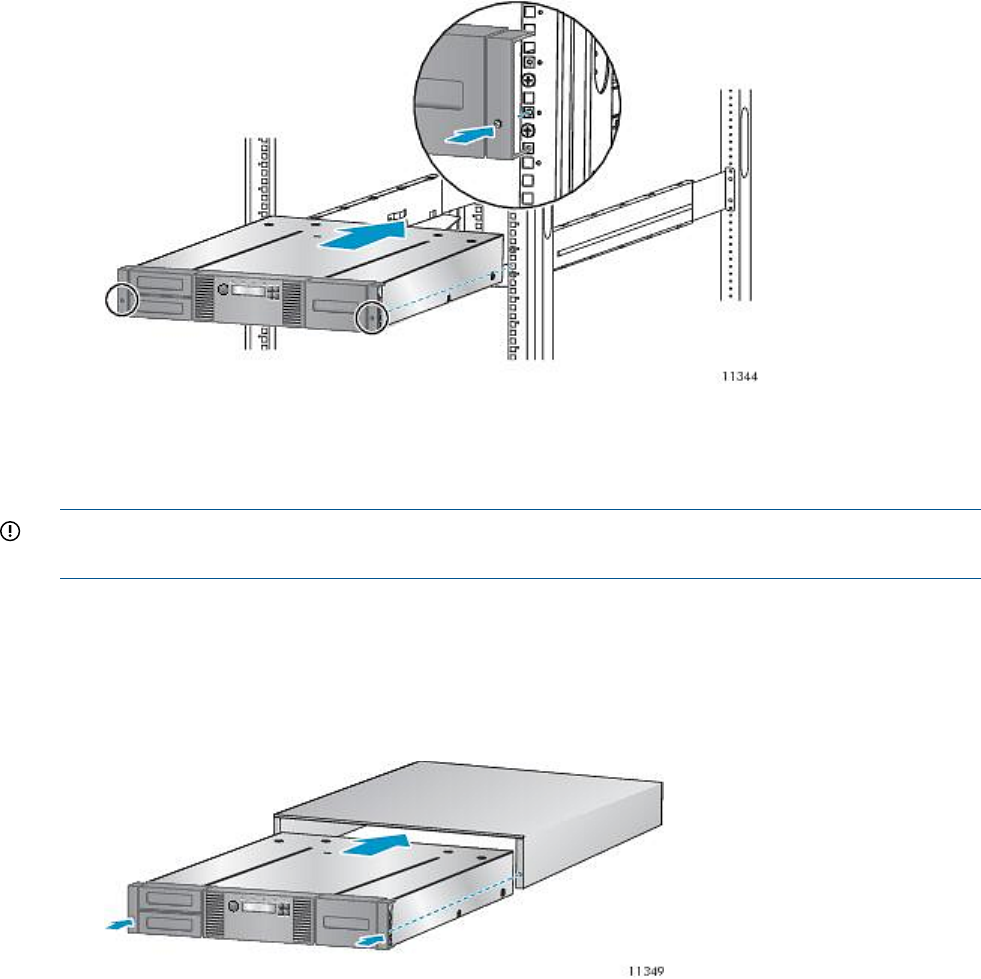

Figure 40 Securing the tape library to the rack
Installing the tabletop conversion kit
The Rack to Tabletop Conversion Kit supports the edges of the library, but is not a structural top.
IMPORTANT: You may not place any weight on top of the tape library, even with the cover
installed.
To install the cover:
1. Place the cover on a flat, level surface behind the device.
2. Slide the device into the cover until the front panel of the device is aligned with the cover (see
Figure 41 (page 48)).
Figure 41 Installing the tabletop conversion cover
3. Tighten the captive screws on the front panel until the cover is secure.
Installing tape drives
If your library does not have a tape drive installed, install the tape drives now. If the library already
has a tape drive and you purchased additional tape drives, you can install them now or wait until
after the library installation is complete.
To install tape drives:
48 Installing the library
