1. Locate an appropriate vacant drive bay on the back of the library.
• MSL2024: The first tape drive should be installed in the bottom drive bay. If the first tape
drive is a half-height tape drive, you can install an additional half-height tape drive in
the top bay.
• MSL4048: The first tape drive should be installed in the bottom drive bay. Install each
additional tape drive in the drive bay directly above the existing tape drives. If you leave
a space and later add a tape drive in the space, the new tape drive will be assigned the
next higher drive number, leaving the tape drives numbered out of order. If the settings
are restored to the factory defaults or the library is power-cycled, the drives will be
renumbered and you might need to update the configuration of your backup servers.
NOTE: The library will not operate with a full-height tape drive installed in the second
and third half-height drive bays. Install a full-height tape drive either in the bottom two
drive bays or the top two drive bays.
NOTE: If you plan to partition the library into two logical libraries, the second tape
drive must be installed in the third half-height drive bay. For tape drive locations for two
logical libraries, see “MSL4048 and MSL8096 Tape Libraries partitioned into two logical
libraries” (page 20).
• MSL8048 and MSL8096: The first tape drive should be installed in the bottom drive bay.
The MSL8048 and MSL8096 have four tape drive connectors in the locations where
full-height tape drives would be installed. When installing a half-height tape drive, install
it in the drive bay directly above a full-height tape drive or above a half-height drive and
half-height face plate pair as shown in Figure 42 (page 49).

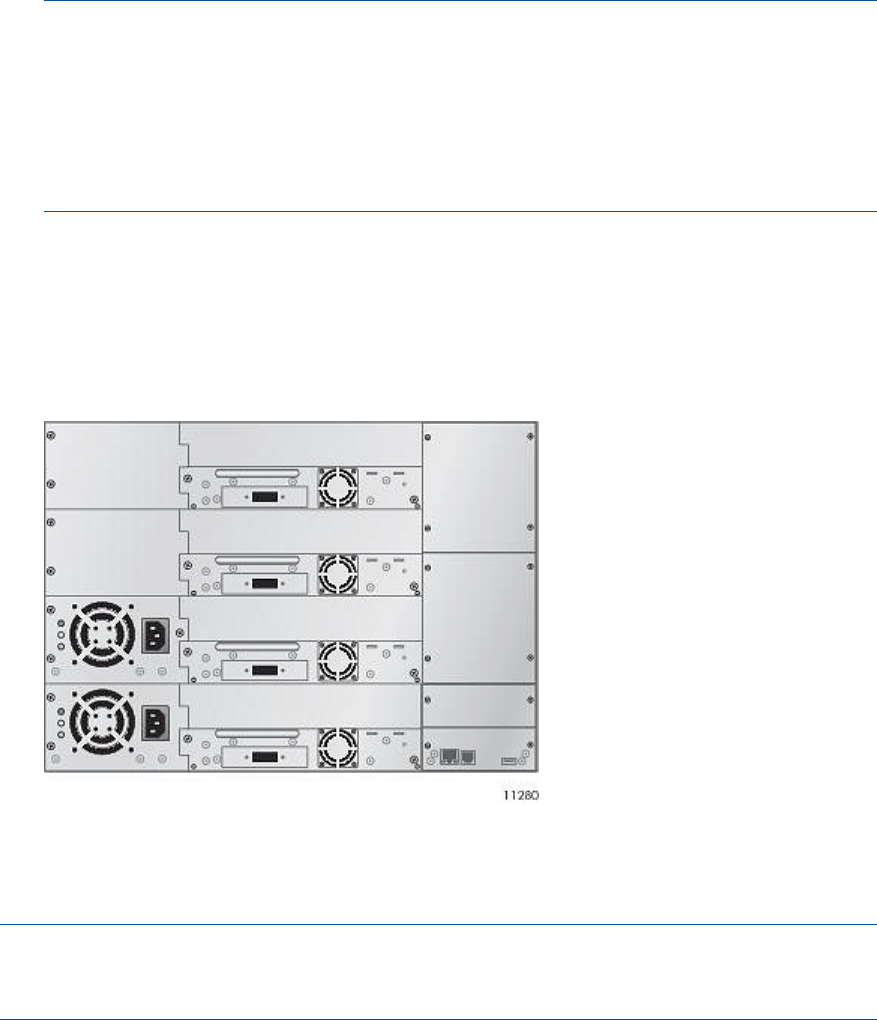

Figure 42 MSL8048 and MSL8096 locations for half-height drives
Remove the face plate covering the drive bay by removing the screws holding it in place.
Remove one drive bay cover to install a half-height tape drive; remove two drive bay covers
to install a full-height tape drive.
NOTE: If you plan to partition the library into two logical libraries, the second tape drive
must be installed in the third drive bay. For tape drive locations for two logical libraries, see
“MSL4048 and MSL8096 Tape Libraries partitioned into two logical libraries” (page 20).
2. Holding the tape drive by the handle and supporting it from the bottom, slide the tape drive
into the drive bay until it is flush with the back of the library as shown in Figure 43 (page 50).
